VisionAI - Fatigue with C29N and DSC in Combined mode

Marisa Potgieter

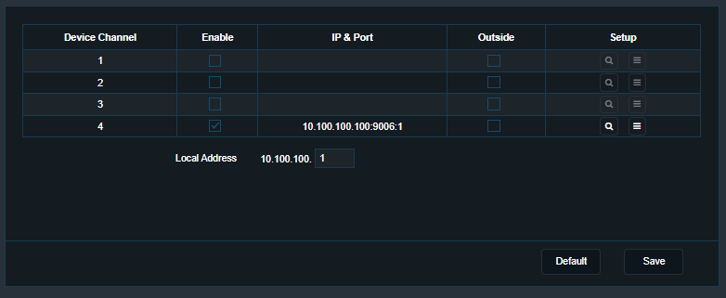

IPC Detection

Unsure IPC is detected and correctly configured.

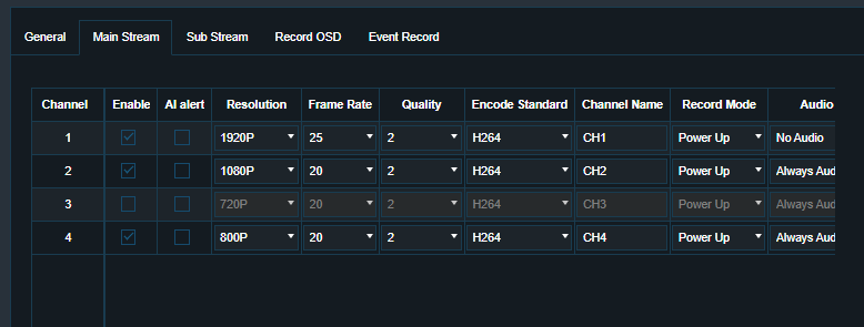

Mainstream resolution

ADAS and DSC resolution MUST be set "high".

Recommended:

  • Ch1 ADAS: 1920p/25fps, Q 12, or 3.
  • Ch2 DSC: 1080p/20fps, Q1,2 or 3.
  • C4 DSC: As the AI in the c29N is doing the work, highest resolution is not required. For clarity on High resolution downloads, we still recommend 800p/20fps, Q1,2 or 3.

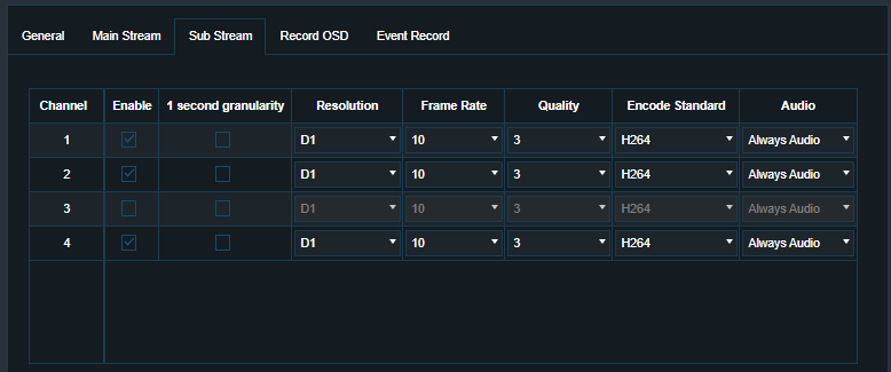

Sub-Stream

As Sub-stream is not used for any AI algorithm data, this can be set to low, or according to client’s preferences.

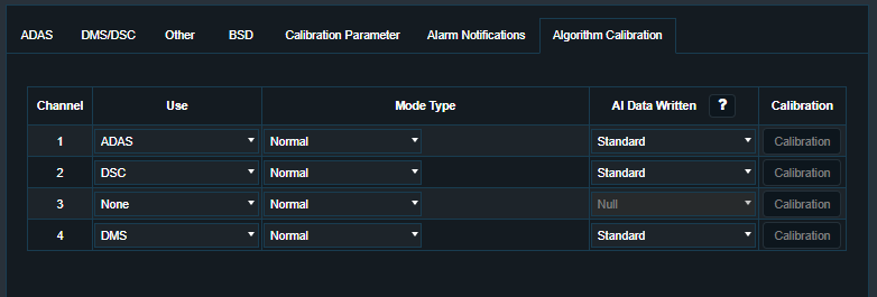

Algorithm Calibration

Ensure the following settings:

  • Channel 1 is set to ADAS.
  • Channel 2 is set to DSC.
  • Channel 3 is set to DSM

![[Algorithm Calibration.png]]

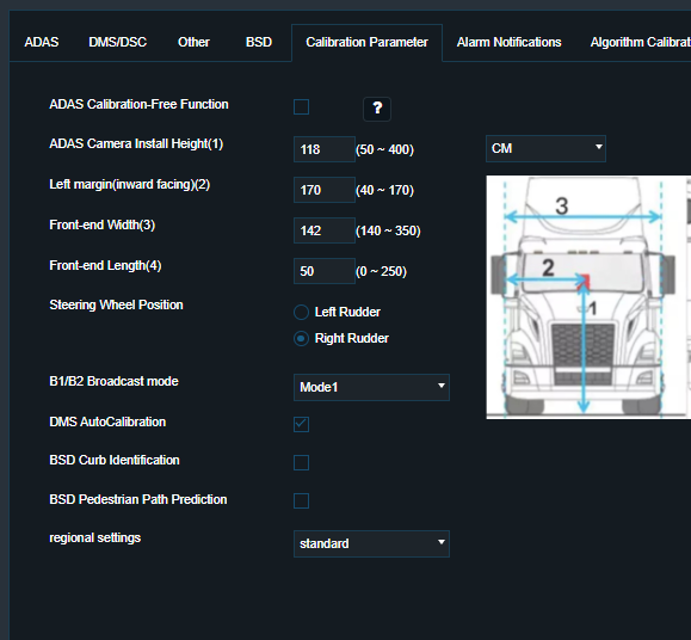

Calibration Parameters

For Right-Hand Drive countries, using the EU type Traffic signs it is vital that ‘Steering Wheel Position’ is set to “right”.

Regional Settings to be set to Standard.

ADAS Calibration Measurements must be accurate (± 5 cm).

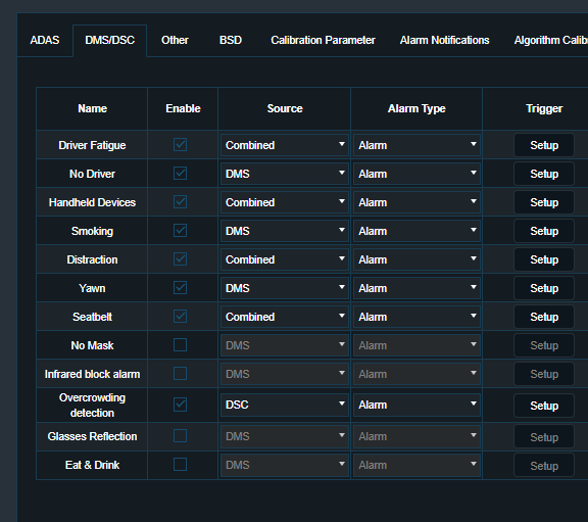

MDS/DSC Setup

DMS and DSC fusion detection should be utilized to enhance the detection of events.

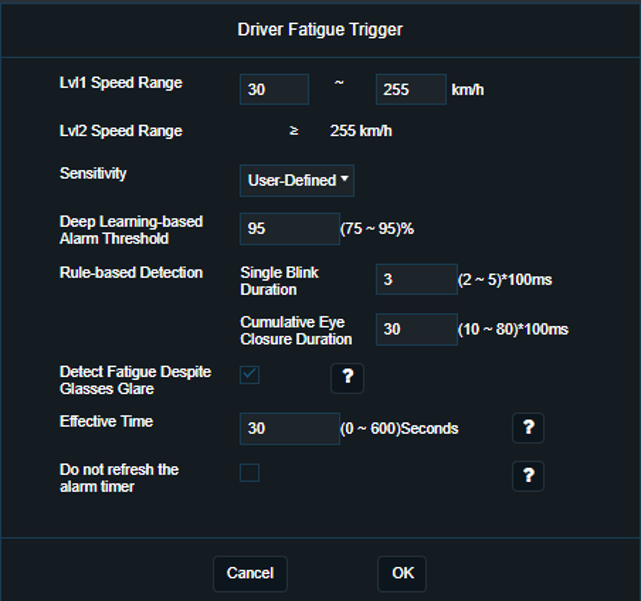

Driver Fatigue Setup

The pre-defined configurations work well. However, if the setup requires some customization the parameters listed below have been used during Feld Testing and have shown to be reasonably accurate.
