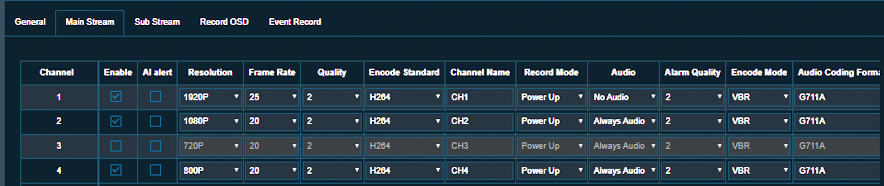

The AI engine utilized the video captured by the Mainstream video channel. To ensure the engine is being fed the best available video data changes to the minimal Video Capture Parameters should be done.
Channel 1 for ADAS must me set to Maximum resolution and 25 fps.
The DSC channel, Channel 2, must be set to maximum but can have a lower frame rate at 20 fps.
The DSM channel, because the AI is done by the C29N IPC camara, can physically be lower as the individual frames are not used by the Devices AI.
We recommend for fluency 20 fps but can be reduced to 10 fps if there are storage considerations.
