The MiX Vision Ai Standalone peripheral can be connected on the mobile device template to the Streamax standalone device. It is connected to the SP line, which is the connection for the new standalone peripheral type. This type indicates that there is no direct communication between the camera unit and the on-board computer.

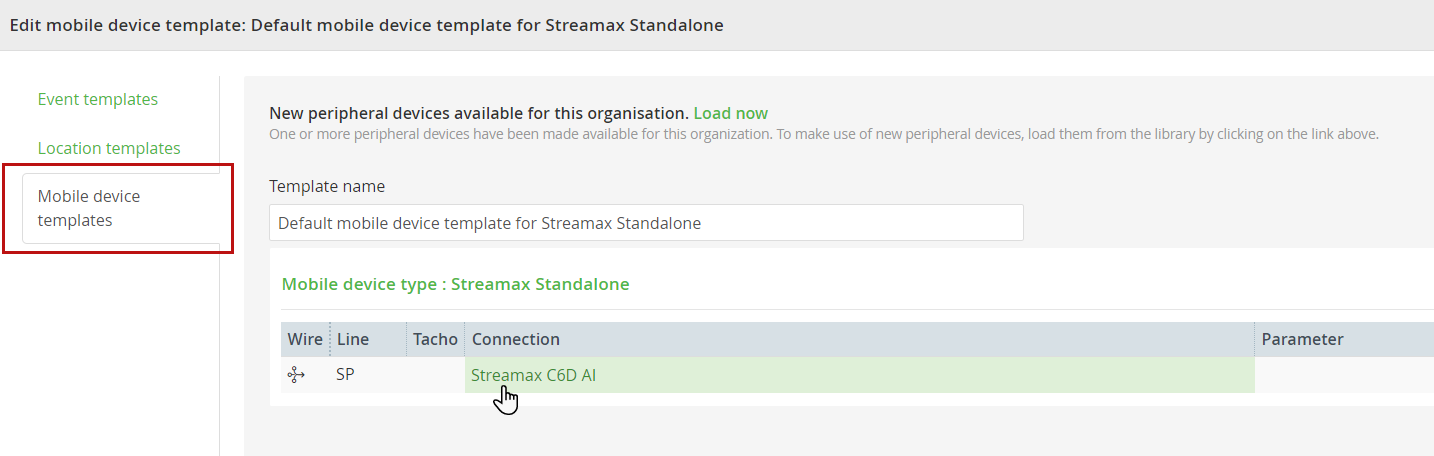

- Click Manage.
- Under Config Admin, click Templates.
- Click on the Mobile device templates tab on the left.
- Search for the relevant mobile device template in the list.
- Scroll down to the line connections and look for the SP line.
- Click on "not connected".
- Select a relevant peripheral device from the list, e.g. Streamax C6D AI, AD Plus, etc.
- Click Save.
