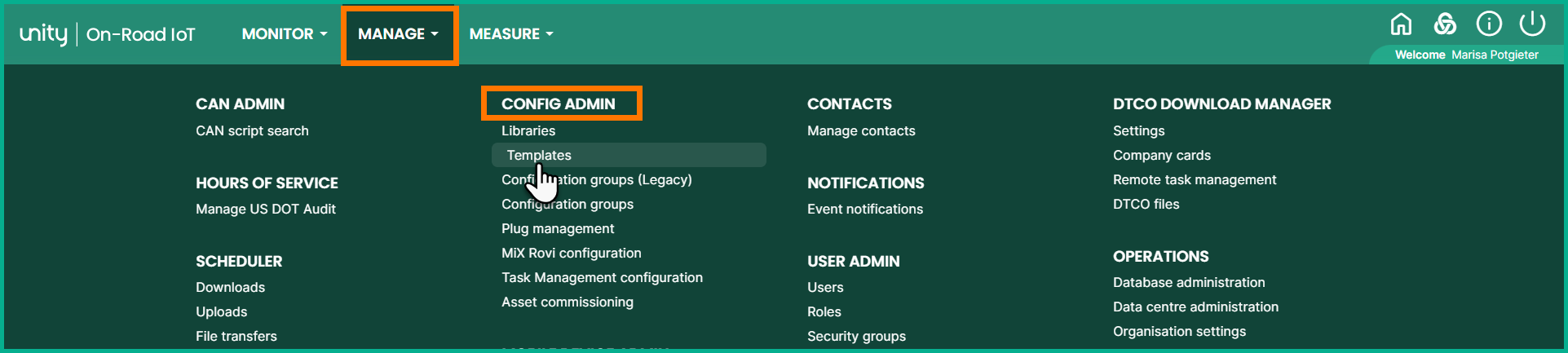

- Click Manage.
- Under Config Admin, click Templates.
- Click on the Add mobile device template button,
- Select the device type, e.g. MiX 6000 or Teltonika, etc.
- Enter a name for the template, e.g. Seeing Machines - MiX 4000 or MiX Rovi: location over speeding.
- Click Save.
From within this screen the mobile device properties and the connected peripherals can now be configured

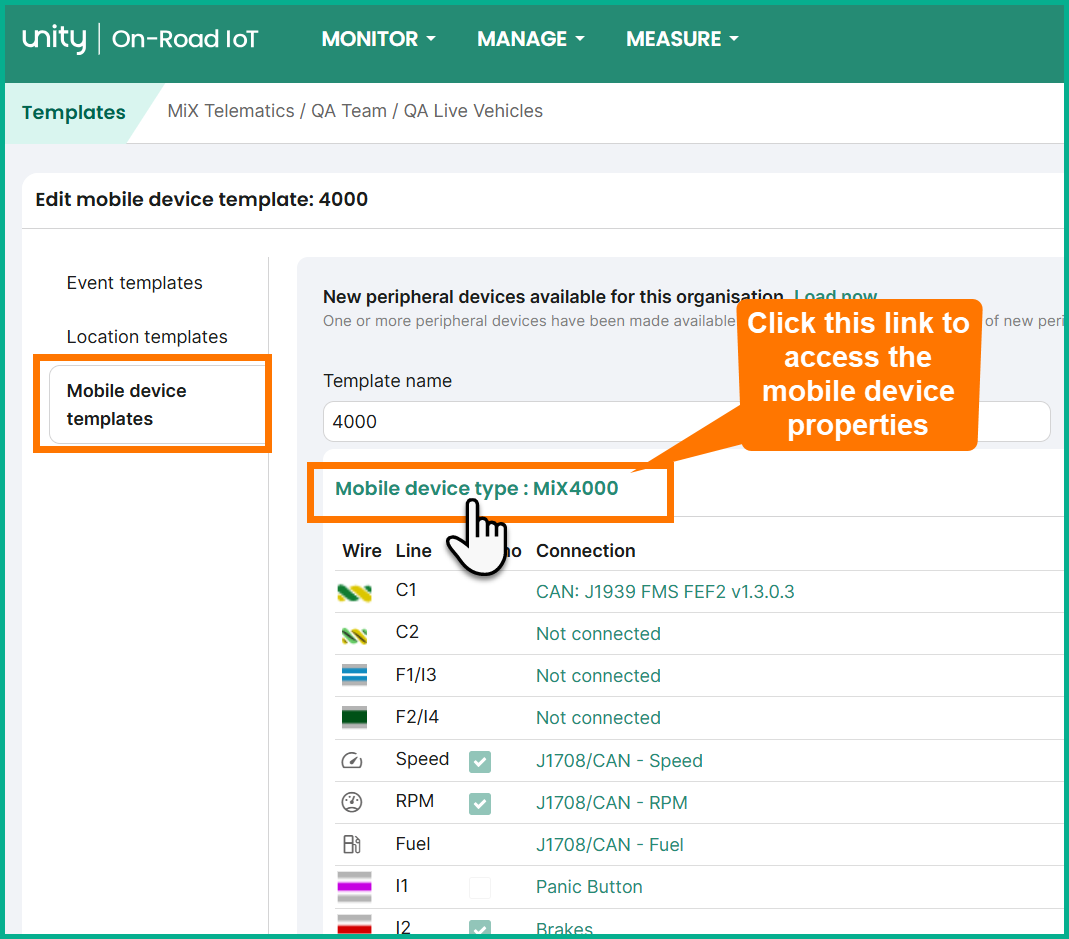

To access the mobile device properties:
- Click on the mobile device type at the top to access the mobile device properties.
To configure the connections:

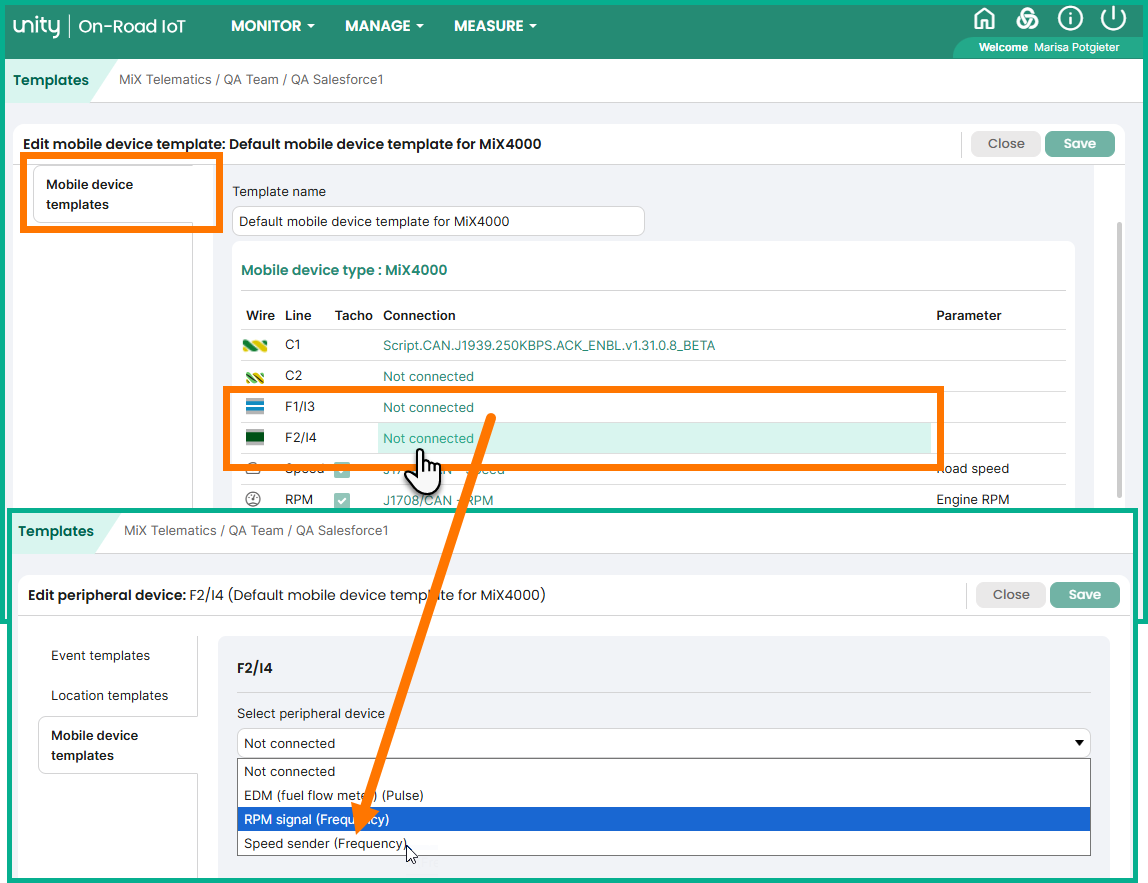

To link a peripheral to a line, click on the text "Not connected" as shown below. Click on the name of the peripheral to change a connection. Remember that the lines differ depending on the type of device/unit you are configuring.
