DTCO 4.0: Driver first time use to share ITS data for driver details

The DTCO 4.0 must meet numerous data protection requirements pursuant to Regulation (EU) 165/2014 as well as the current version of Implementing Regulation (EU) 2016/799. In addition the DTCO 4.0 fulfills the requirements of the General Data Protection Regulation (EU) 2016/679, as amended.

Instruction Manual:

This affects in particular:

• This applies only to DTCO 4.0(Smart DTCO)

•  The driver's consent to the processing of personal ITS data

•   Changing the settings to personal ITS data will need to be processed for both drivers 1/2

•  Blocking the ITS Data will result in not showing the driver on the trip timeline. To solve this please follow the instruction "Changing settings to personal ITS data" and "Changing settings to personal VDO data".

Enable DTCO to send out Driver Card DTCO information as per Instruction Manual

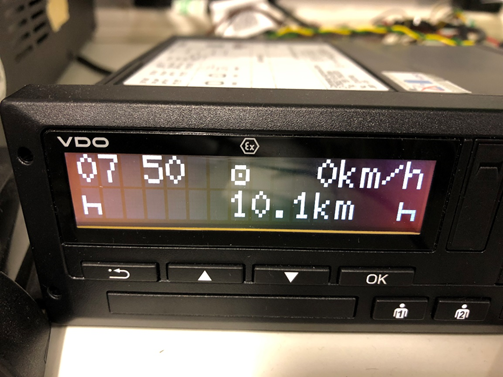

1. Ignition off

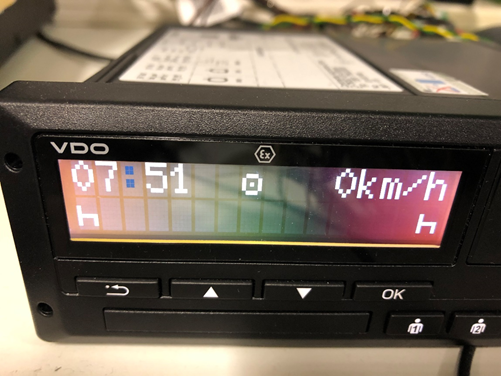

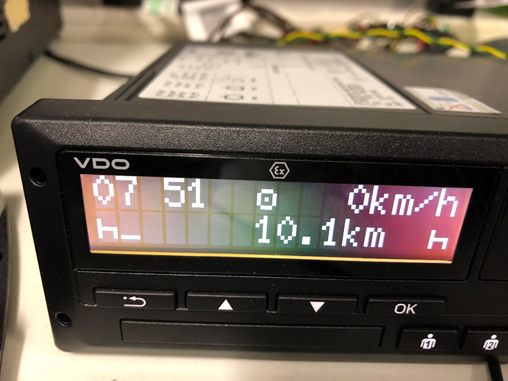

2. Ignition on

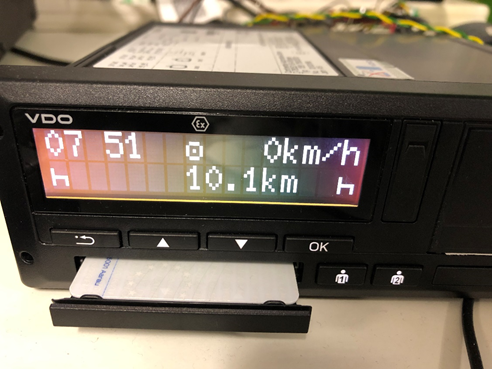

3. Card slot opened

4. New card inserted, waiting to load card data

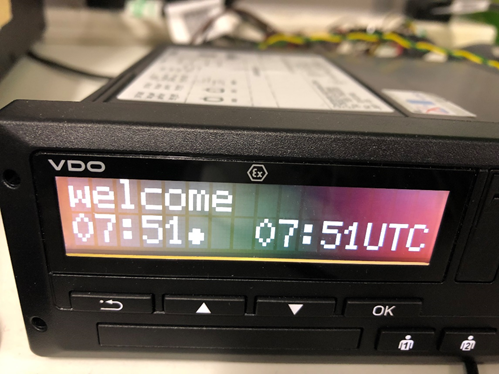

5. Card recognised

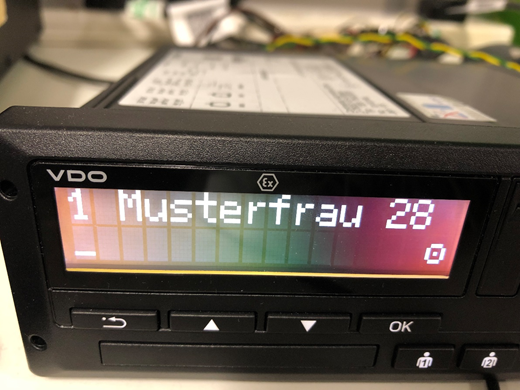

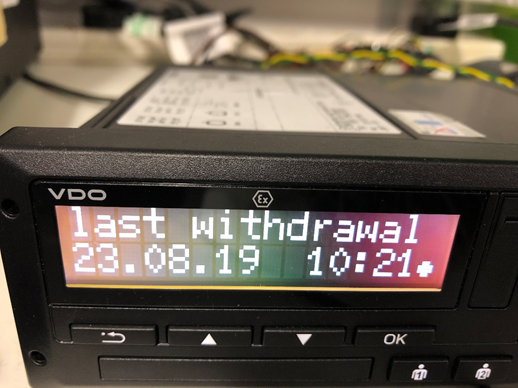

6. Card details read

7. Further card details

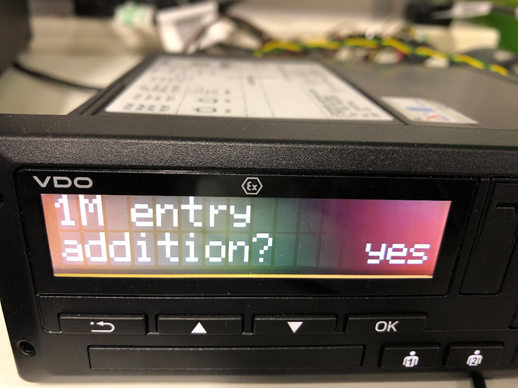

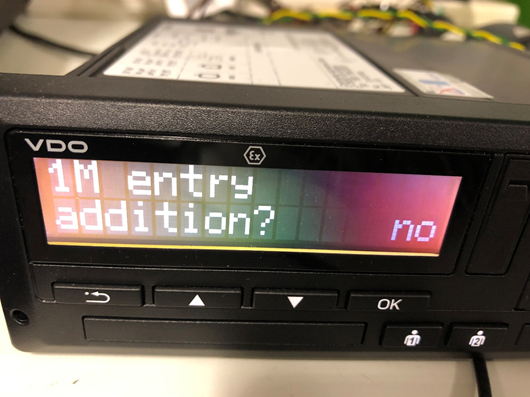

8. First selection request, pressed down to get to the “No” option

9. “No” option selected

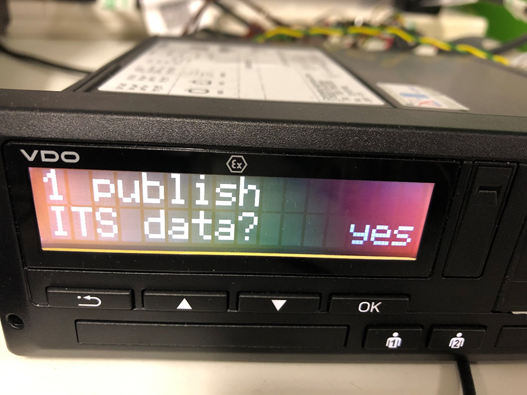

 10. Enable unit to send D8 info for Driver Card identification by MiX Telematics, “Yes” option selected

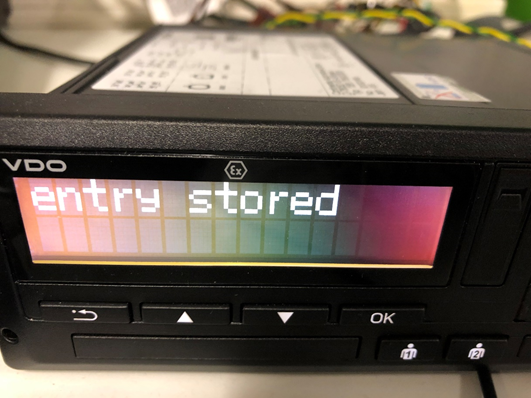

 11. Data selection entry stored

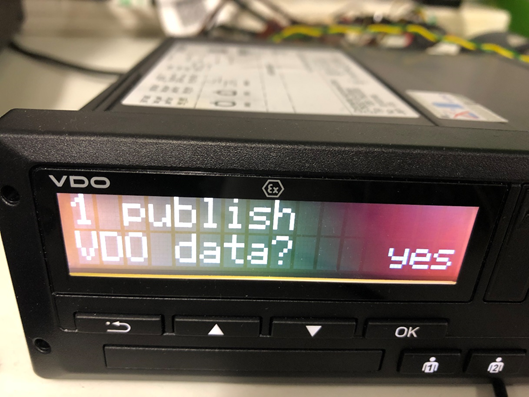

 12. Enable VDO Counter data, driver’s HOS info, “Yes” option selected

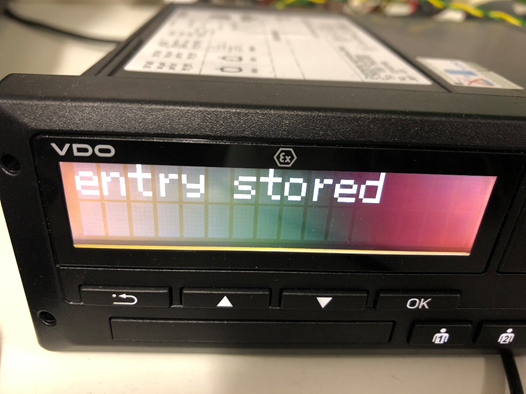

13. Data entry selection stored

 14. All options selected and waiting for Driver Card to be opened by the DTCO

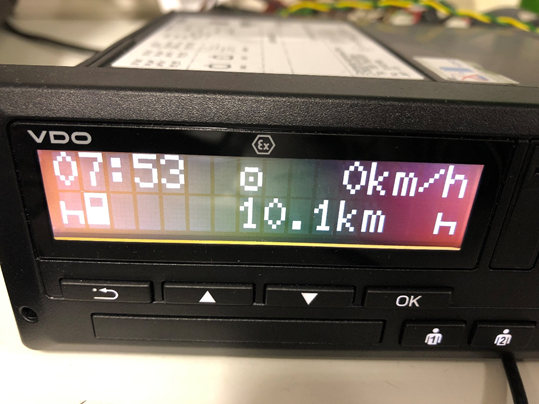

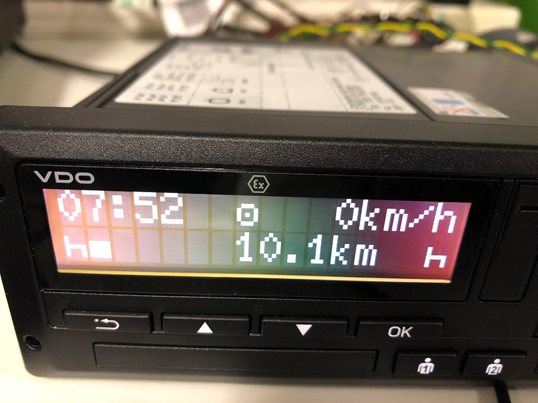

15. DTCO ready to drive

If the Driver has not followed the steps above or if the driver is not showing on trip timeline, please try the following: DTCO 4.0 Enable once driver has selected NO for TIS data
