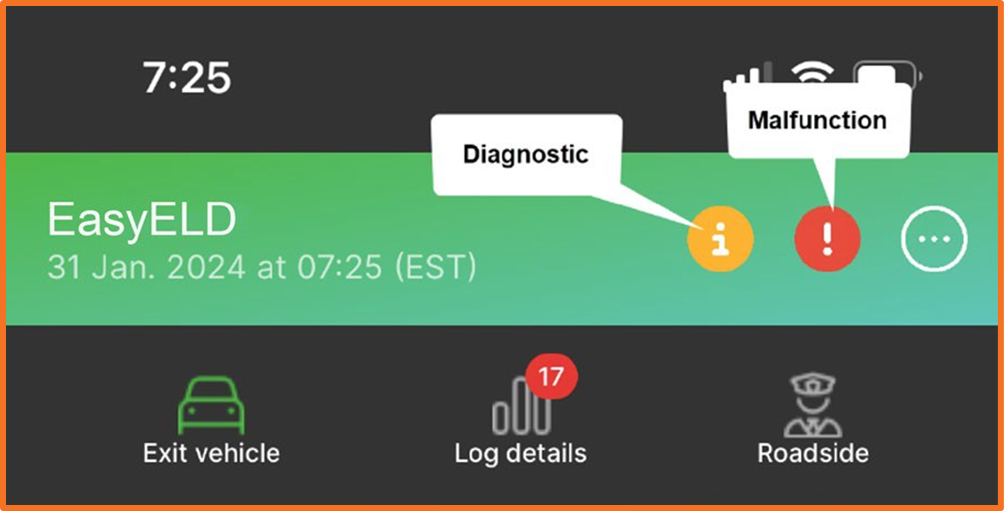

Malfunctions are indicated with a red exclamation mark and diagnostics will show as a yellow info button.
- Tap the Malfunctions or Diagnostics icon when they appear to view more information.

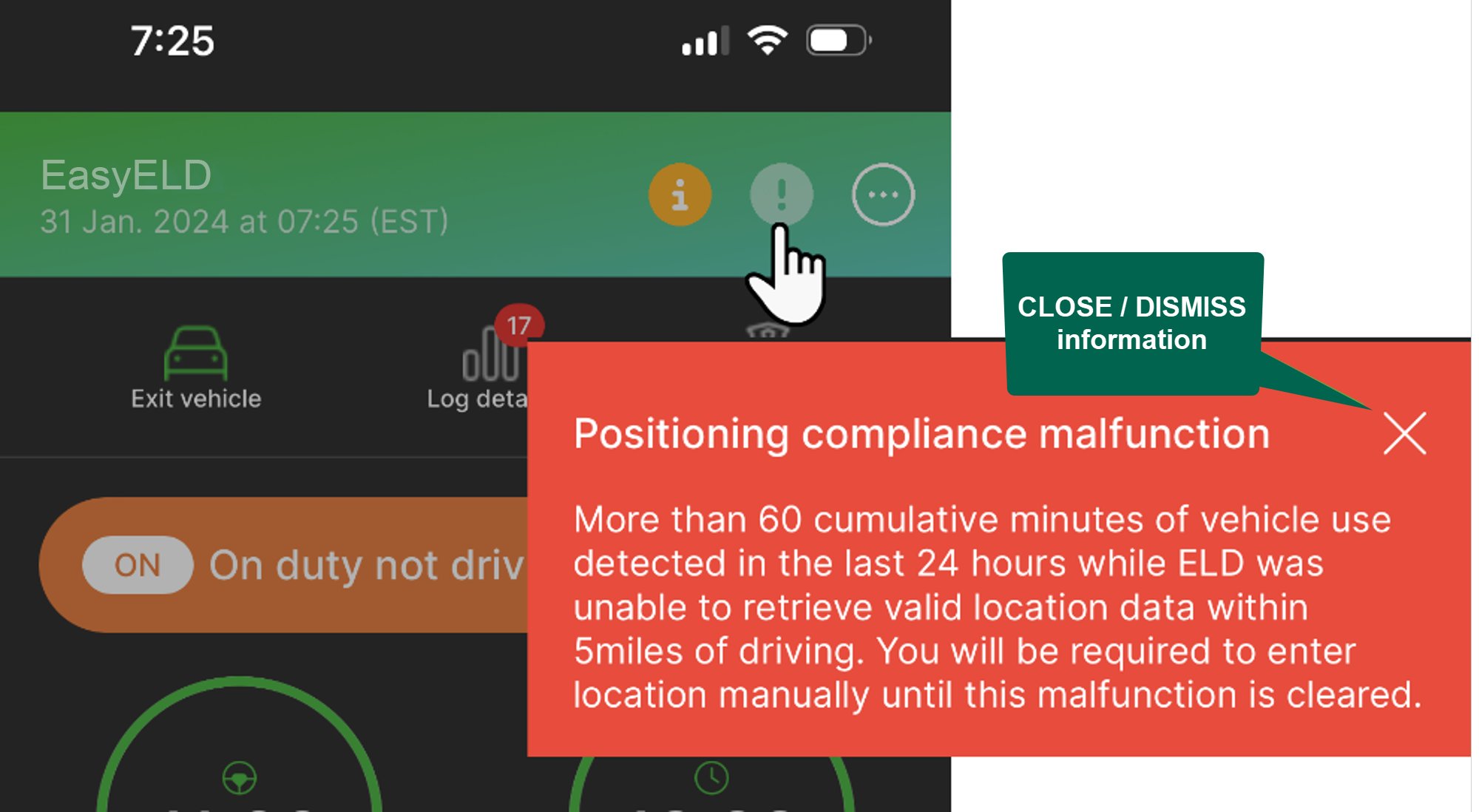

- Dismiss the information box by clicking the X in the top right corner.
Malfunctions
P - Power compliance malfunction
More than 30 cumulative minutes of vehicle use detected in the last 24 hours while ELD was not powered on. Please inform your supervisor within 24 hours.
E - Engine synchronization compliance malfunction
More than 30 cumulative minutes of vehicle use detected while connection was lost between the ELD and the vehicle engine. Please inform your supervisor within 24 hours.
T - Timing compliance malfunction
ELD time is no longer accurate and has deviated from UTC by more than 10 minutes. Please inform your supervisor within 24 hours.
L - Positioning compliance malfunction
More than 60 cumulative minutes of vehicle use detected in the last 24 hours while ELD was unable to retrieve valid location data within 5miles of driving. You will be required to enter location manually until this malfunction is cleared.
R - Data recording compliance malfunction
ELD can no longer retain or retrieve required data elements for recorded logs. Some data elements will be omitted from the driver logs. Please inform your supervisor within 24 hours.
S - Data transfer compliance malfunction
More than 24 cumulative hours of ELD use detected while unable to confirm proper data transfer operations. Please inform your supervisor within 24 hours.
O - "Other" ELD detected malfunction
Diagnostics
1 - Power data diagnostic event
Vehicle use detected while ELD was not powered on. Please ensure your ELD is powered on and operational before continuing.
2 - Engine synchronization data diagnostic event
Vehicle use detected while connection was lost between the ELD and the vehicle engine. Please ensure your ELD is powered on and operational before continuing.
3 - Missing required data elements data diagnostic event
The ELD can no longer retrieve required data elements for recorded logs. You may be required to enter data such as location information manually.
4 - Data transfer data diagnostic event
The ELD is unable to confirm proper data transfer operations. Please inform your supervisor within 24 hours.
5 - Unidentified driving records data diagnostic event
More than 30 minutes of Unidentified driving detected within a 24-hour period. To clear, please review and claim any driving that belongs to you.
6 - "Other" ELD identified diagnostic event
