Use Event Analyzer to classify events and violations. You can retrieve these classifications in the Violations Classification report.
Permission: You will need permission to Event Analyzer to access this feature.

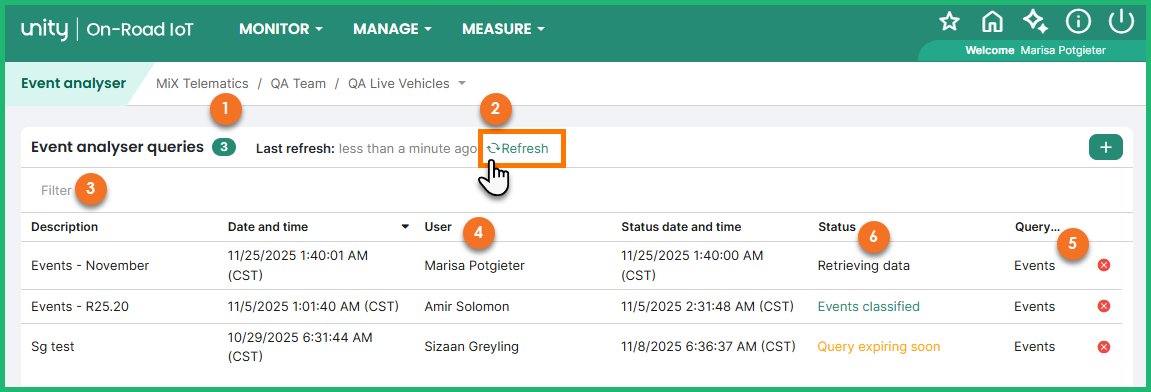

- In On-Road IoT, click Measure.
- Under Insights, click Event Analyzer.
- Use the Miller columns to select your organization/site. You can select multiple sites.
- You will now see a list of all the existing event queries. You can only see queries of the sites you have access to.
- The total number of queries is displayed at the top next to the heading.

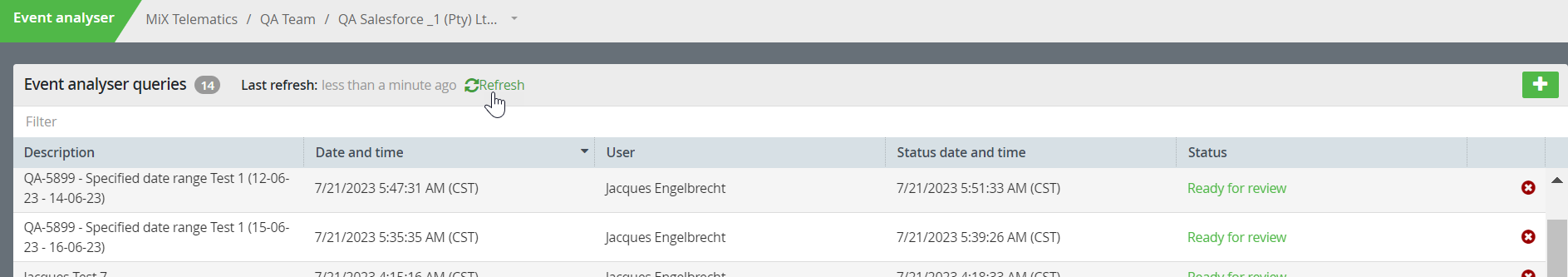

- You can refresh the page by clicking the Refresh icon at the top. The last refresh time is also indicated in the heading.
- Filter or search for a query by typing in the Filter box at the top.
The user column shows the user who performed the last action, i.e. the person who created it will be displayed, but if another user performed the event classification, the new user name will be shown in the column.
The user's name will not be displayed in the column name if the person viewing the page has fewer permissions in the organizational levels (e.g. site-level users, instead of an organization-level user) than the user who created the query.- The Query type will indicate if the query is for HOS violations or Events.
- View the status column for a progress update on the analysis query. The status date and time show when the status was recorded and can be used to see when the status changed and how much time is left to take action if needed.
Statuses:
- Retrieving data - the query is in progress and you cannot click this text.
- Ready for review - click on the green hyperlinked text to open the query and view the event results of the query.

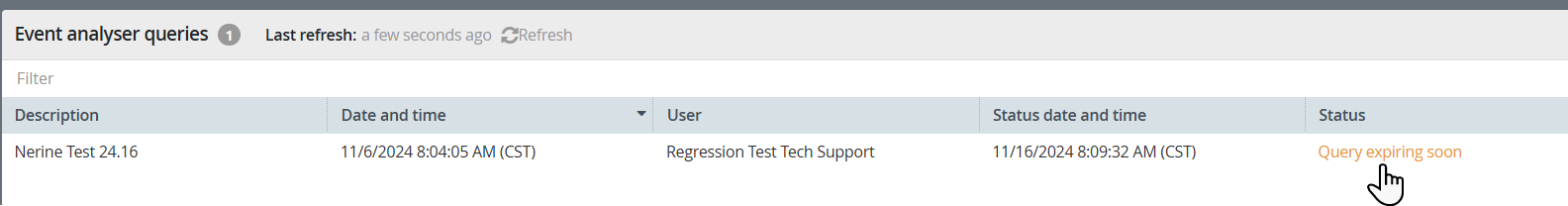

- Query expiring soon - if the query has been in a "Ready for review" status for 10 days. Click the orange clickable link to take action. If no action has been taken in 14 days since the query, it will automatically be removed from the list.
- Events classified - click the green hyperlinked text to view the classified events. This will be removed from the list after 5 days.
- Data retrieval failed - click the red hyperlinked text to see the error code. The failed query will also be removed from the list after 5 days.
