The state of charge battery level is indicated in the analytics panel and next to each asset in the list of assets in trip and assets out of trip on the Electric fleet operations panel.

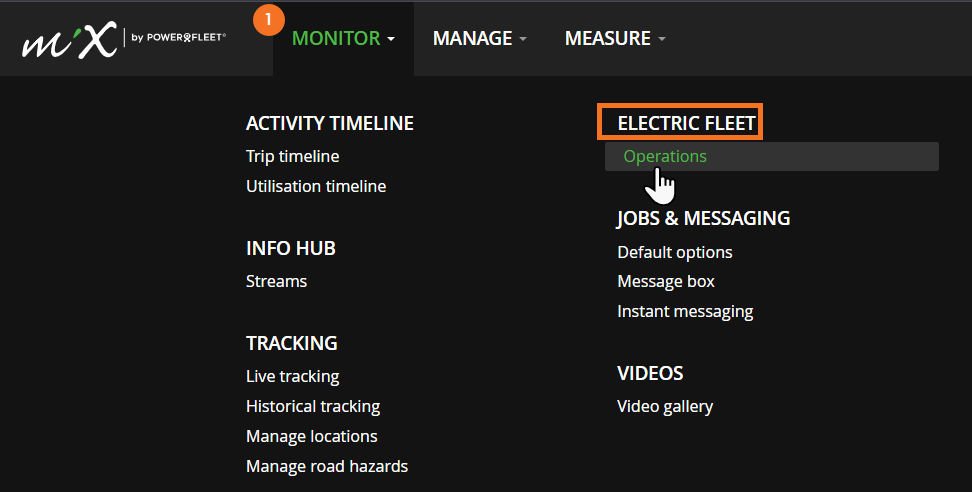

- Click Monitor.
- Under Electric fleet, click Operations.
- You will see the assets' state of charge in the Analytics panel. There is a 5-minute refresh on the SoC.

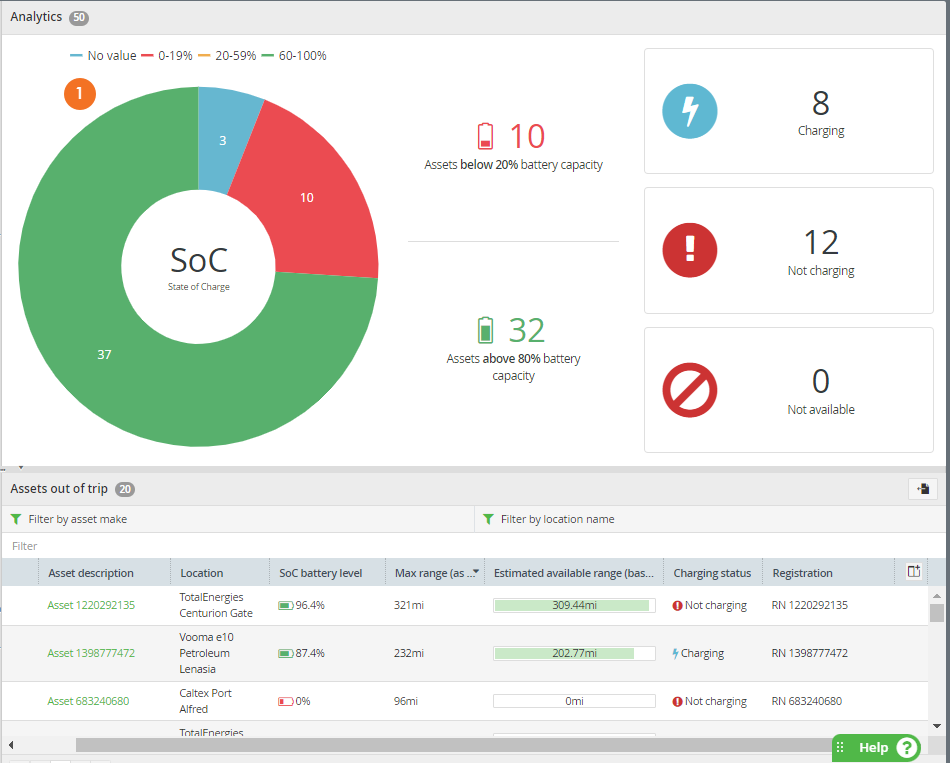

The round donut chart (1) shows the number of electric assets and their state of charge:
0-19% - red
20-59% - amber
60-100% - green
No battery status - blue
Read more in View electric assets' State of Charge.

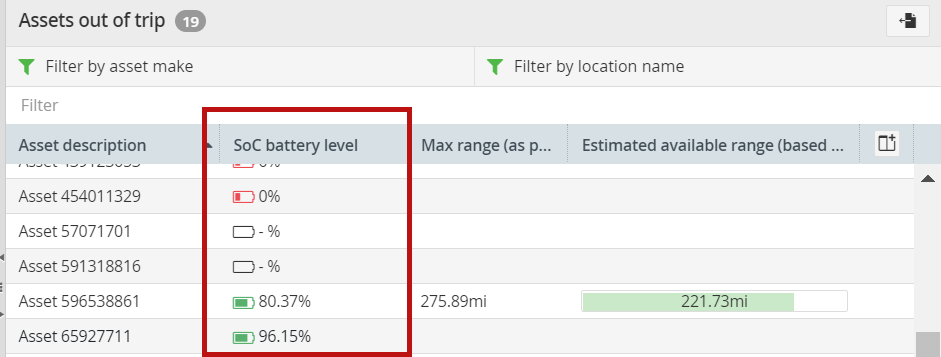

The SoC battery indicator in the Assets in trip and Assets out of trip below shows the exact percentage of the battery level. Please note that an "empty" battery icon displayed in the same color as the text with a dash next to it indicates that the system has not received a battery reading. This is different from a zero reading, where the system knows that the battery is in fact at 0% which will be indicated and displayed in red.

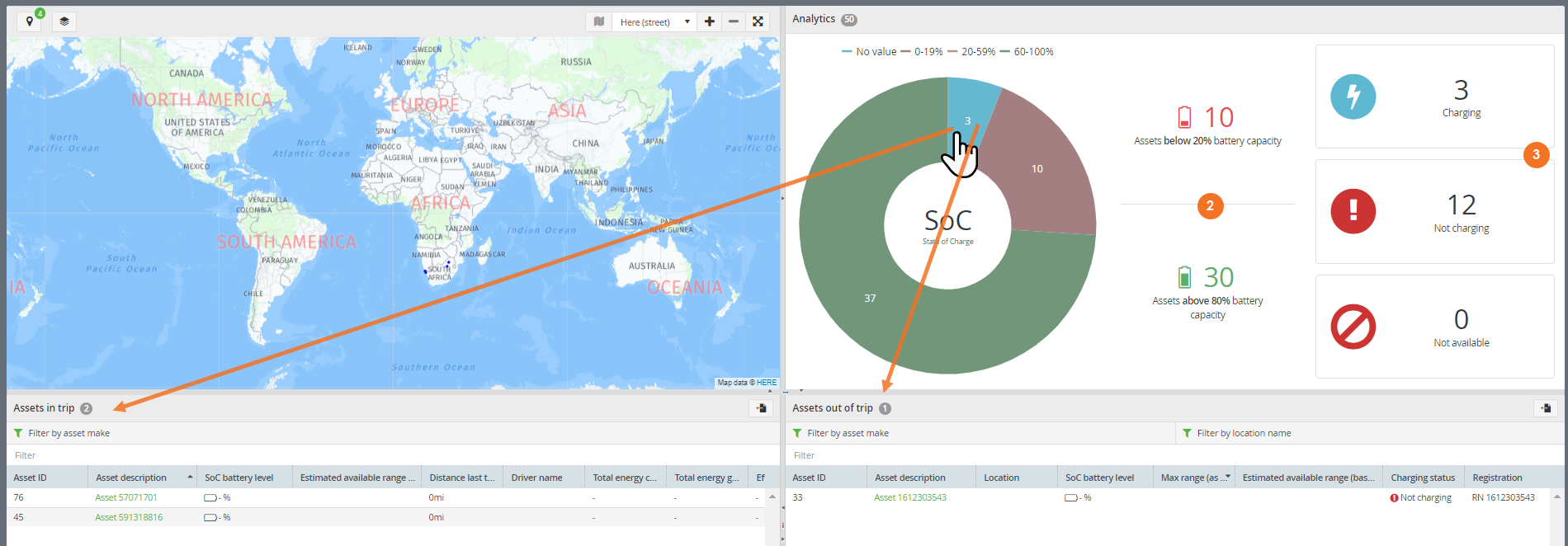

- Click on any of the parts of the chart to filter the panels below accordingly:
- Click the same section again to remove the filter.
