Permission: You will need the "Electric Fleet - Operations" permission to access this feature.

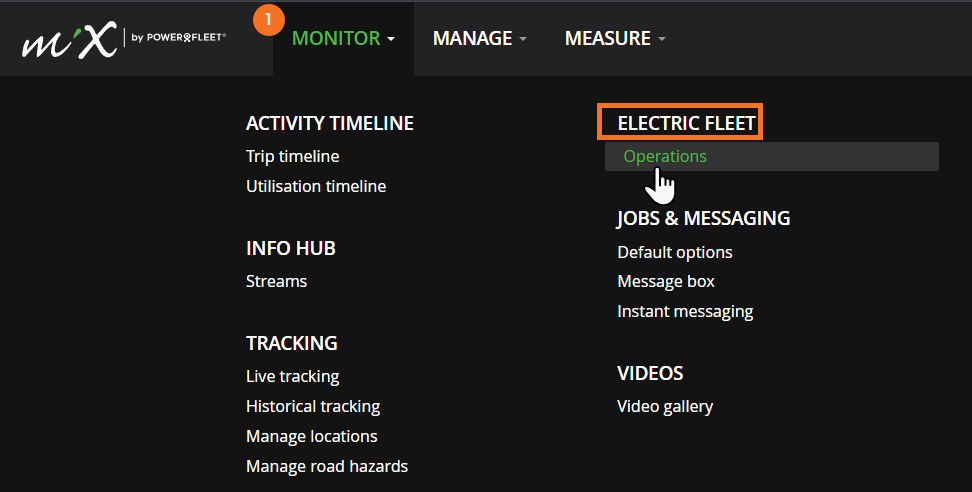

- Click Monitor.
- Under Electric Vehicles, click Operations.
- You will see the assets that have 80% and above battery capacity in the Analytics panel. There is a 5-minute refresh on the battery level.

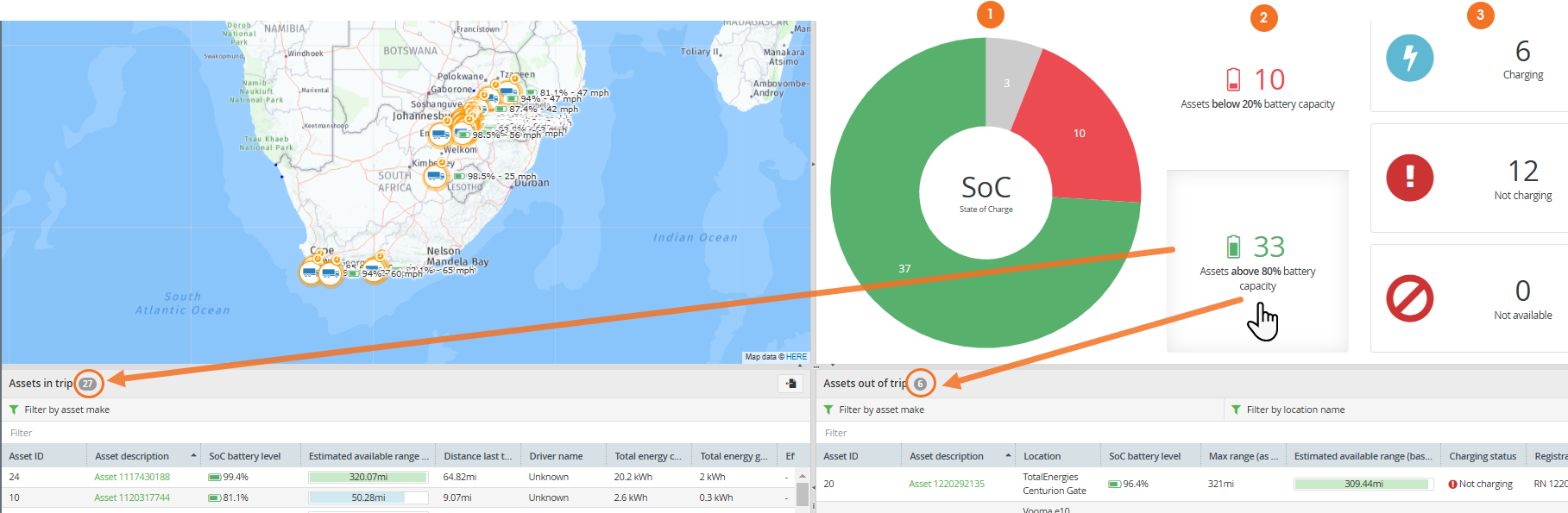

- Click the icon to filter the screen to only show those assets in the panels and on the map. In the example below there are 33 assets with a battery capacity over 80% where 27 are busy with a trip and 6 are out of trip.
Note: The donut chart (1) shows the total number of EV fleet assets (in trip and out of trip) divided into red, amber, green and grey according to the state of charge. These will indicate the same total of assets as in the two panels below.
The icons showing battery capacity (2) indicate either assets below 20% or assets above 80%. Anything assets between the 20 and 80 values are not shown and will therefore not match the totals in chart 1.
The assets that are charging / not charging as shown in 3 only apply to assets that are parked and will therefore not include the total assets in graph 1 and/or 2.
- Click the icon again to deselect and clear the filter to view all your EV assets on the screen.

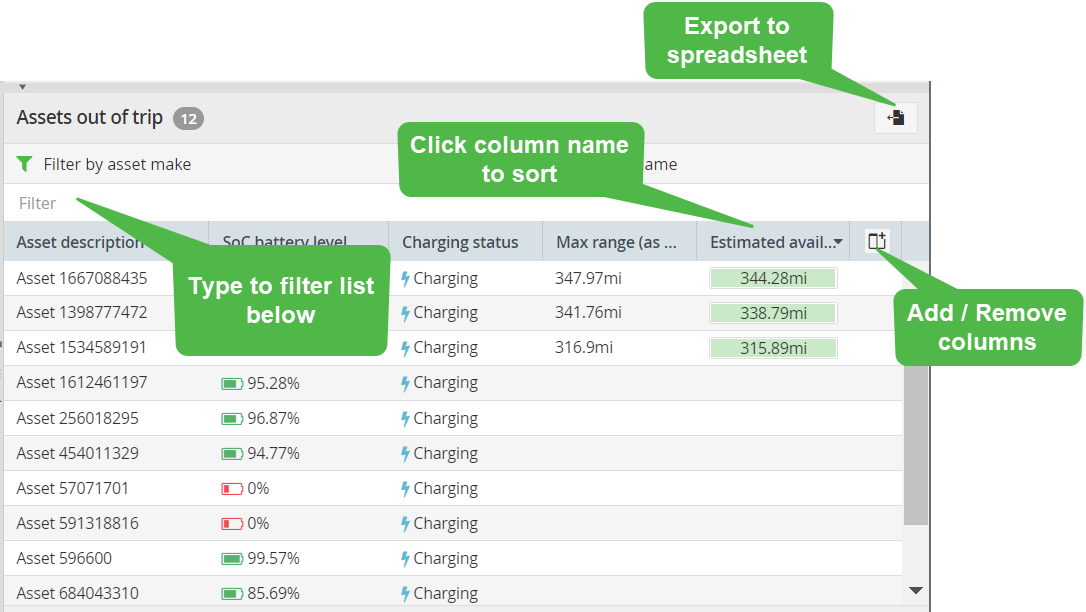

- Export these assets by clicking the export icon at the top of the Assets out of trip or Assets in trip panels:
Note: an "empty" battery icon in the SoC battery level field displayed in the same color as the text with a dash next to it means that the system has not received a battery reading. This is different from a zero reading where the system knows that the battery is in fact at 0% where it will be indicated and displayed in red.
