View the assets linked to the configuration group

Marisa Potgieter
  • Updated
  • Click Manage.
  • Under Config Admin, click Configuration groups.

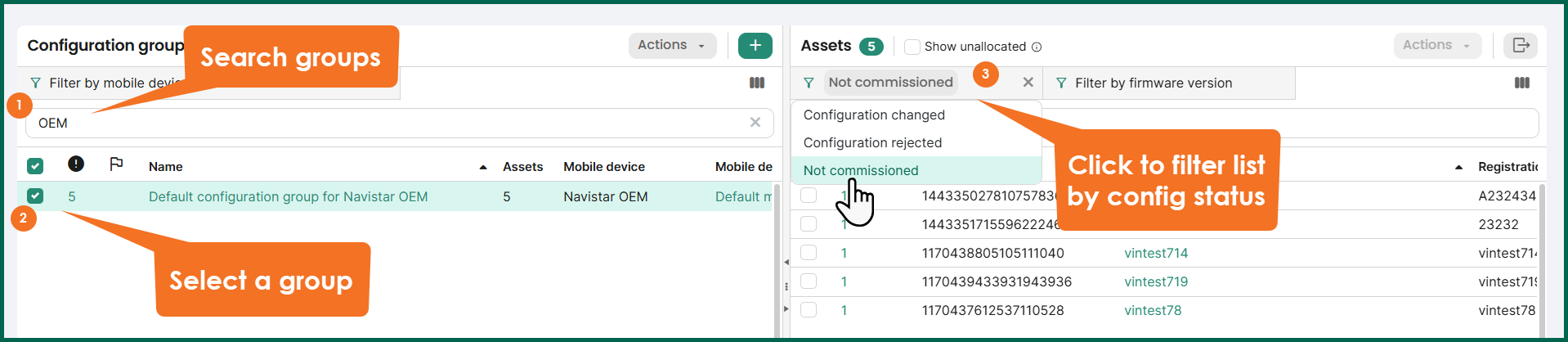

  • Select the relevant configuration group in the list on the left-hand side. You can search for a group using the filter bar at the top.

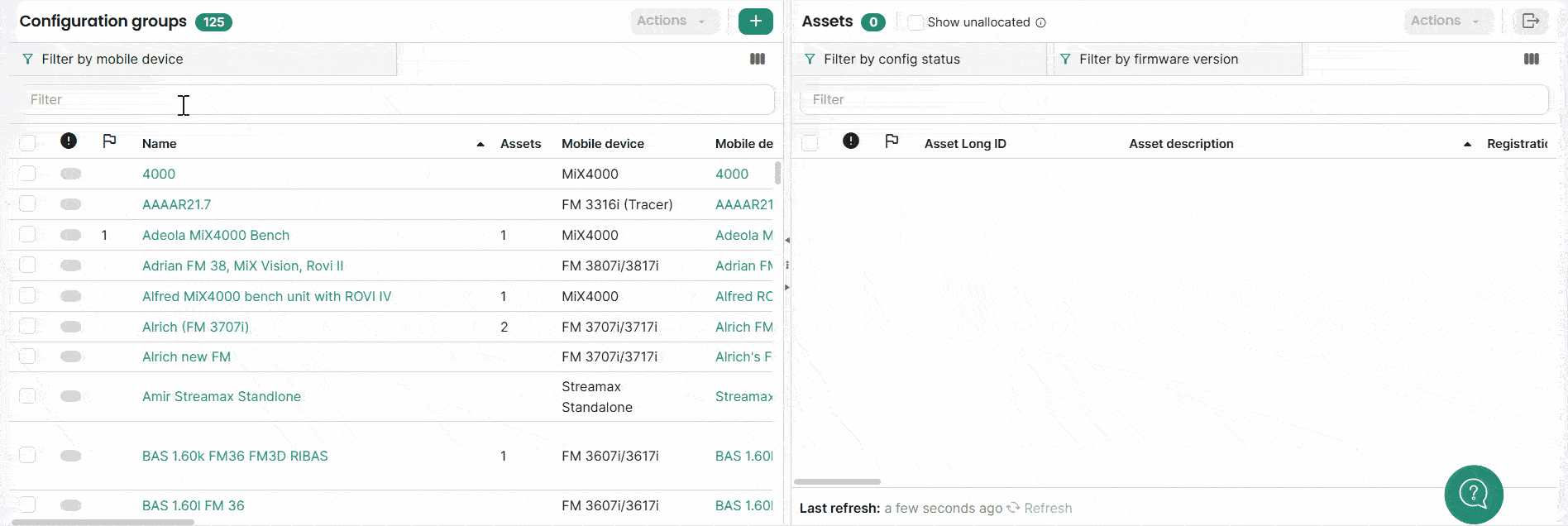

  • Selecting configuration groups on the left will display the related assets in the right panel.
  • Select an asset in the right panel by checking the box next to the asset name.

Filter asset list

  • You can enter text at the top in the filter bar to search for specific assets.
  • You can filter the asset list by configuration status by clicking the filter button at the top. Select from the dropdown list. You can select multiple statuses.
  • Filter the assets by firmware version by clicking the firmware version filter at the top and selecting the relevant firmware version(s).


Actions you can perform on assets

  • Click Actions at the top and choose to:
      • Compile - compile configuration for a single asset.
      • Upload configuration.
      • Upload firmware.
      • Reset the flag.
      • Move the asset to another configuration group.
  • Click the asset name to edit the configuration for an individual asset.

Show all assets

  • You can select all the configuration groups to show all assets on the right hand side by clicking the checkbox in the header that displays all the column names.

Columns

  • Add or remove columns from the page, by clicking the column picker icon, Column_Chooser.png at the top of each panel.
  • Column descriptions:
    • Alerts icon - shows an error count of alerts (e.g. configuration upload request expired or preferred FW version not supported. Click on the number of alerts to open a screen showing the alerts.
    • Flag - shows the number of assets flagged in the configuration group.

    • Name - Configuration group name

    • Mobile device - Mobile device associated with config group

    • Mobile device template - The mobile device template linked to the config group - click on the template name to open the template and view the settings.

    • Event template - Event template linked to config group - click on the template name to open the template and view the settings.

    • Location template - Location template linked to config group - click on the template name to open the template and view the settings.

    • FW version - Preferred firmware version configured on the mobile device connected to the Mobile device template.

    • CAN script - CAN script(s) connected to Mobile device template - click on the name of the CAN script to open it on the template level.

    • Speed - Speed source connected to Mobile device template such as Speed sender, J1708 CAN Speed, GPS velocity as speed.

    • RPM - RPM source connected to Mobile device template such as RPM signal or J1708 CAN RPM.

    • Fuel - Fuel source connected to Mobile device template such as EDM fuel flow meter or J1708 CAN Fuel.

    • SP - shows whether Streamax camera is connected or not and displays the name of the type of camera. Configured on Mobile device template.

    • HOS - shows whether DTCO or ELD is in use. Configured on the Mobile device template (HOS Line).
