A configuration group consists of one mobile device template and one event template. Assets are linked to a configuration group, which determines the complete setup for the mobile device after commissioning and configuration upload.
Once devices are added to the libraries, global settings are configured, and templates are created, you can create or edit configuration groups. This ensures that all these settings apply to the assets assigned to the configuration group.
Available features
Create new configuration groups.
Allocate assets to existing configuration groups.
View the mobile device template and event template assigned to a configuration group.
- Click Manage.
- Under Config Admin, click Configuration groups.

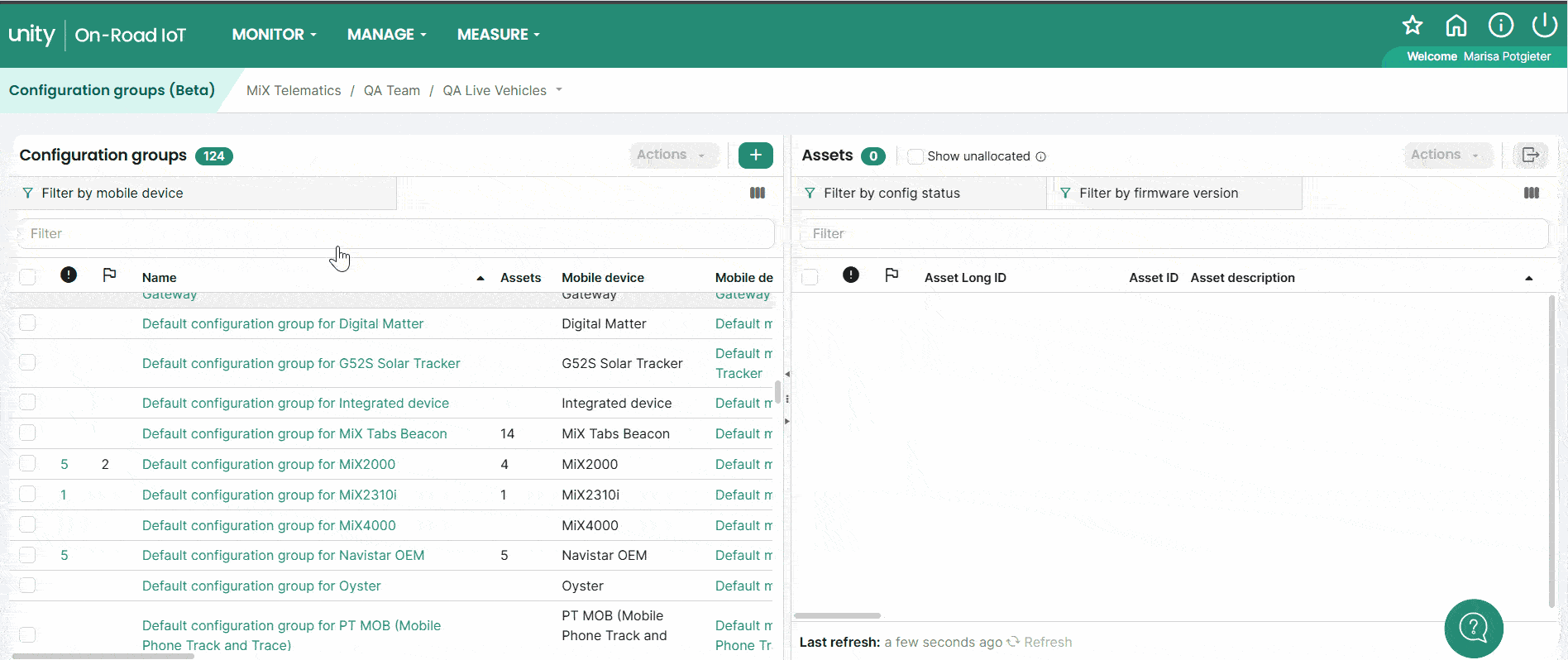

The section on the left shows all the existing configuration groups. A count next to the heading at the top will indicate how many configuration groups are available in the organization.
Check the box next to the configuration group to view all assets linked to that group on the right. You can move the panel around to view more of each section.
Filter configuration groups page
- You can search the configuration groups section or the assets list section by entering text in the top bar of each. The total count displayed next to the configuration groups and assets headers will adjust according to the filtered content shown on the screen.

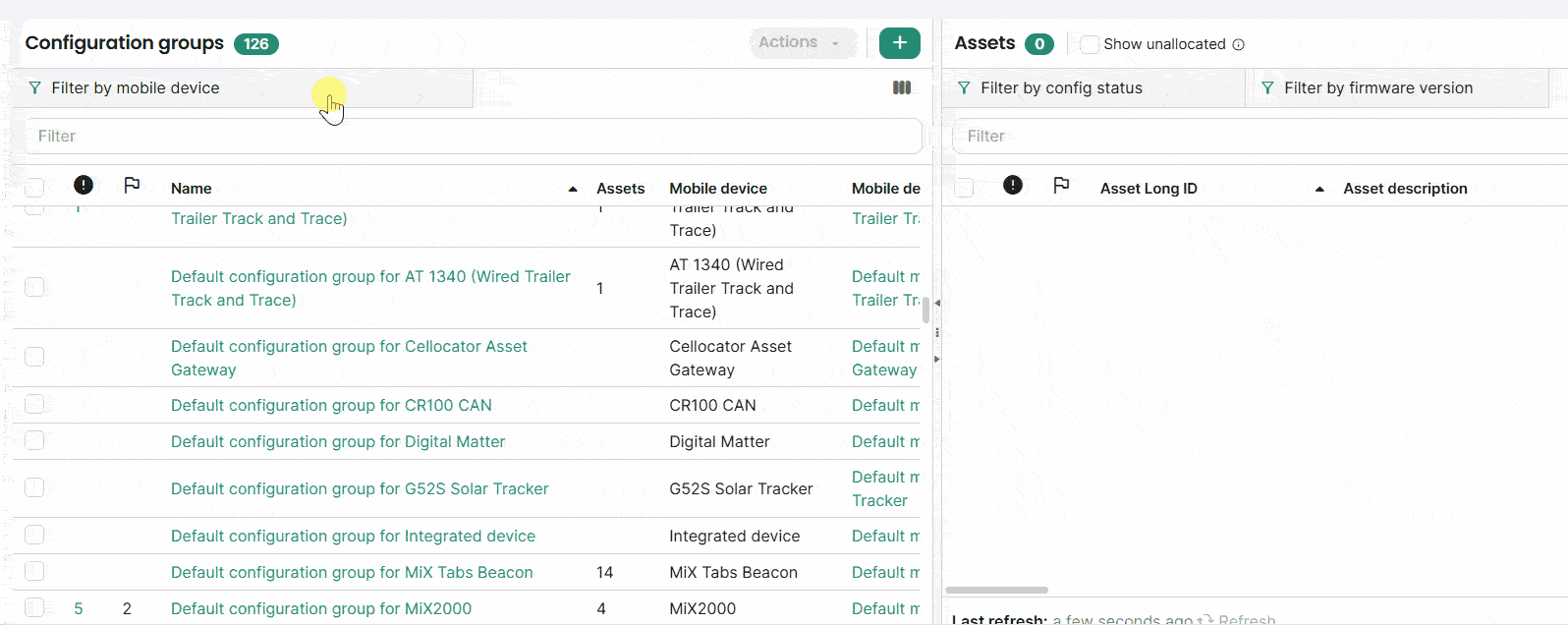

- Search configuration groups by mobile device - Select the Filter by mobile device button at the top of the configuration groups section and select the relevant mobile device(s) from the list. You can filter on multiple, and the list below will adjust accordingly. TIP: You can enter text to sort the dropdown list. Click the X to remove filters.
- Search asset list by config status or by firmware version - Select the Filter by config status or the Filter by firmware version buttons at the top of the asset list. You can select multiple statuses or firmware versions. Click the X to remove filters.
Show all assets
- You can select all the configuration groups to show all assets on the right hand side by clicking the checkbox in the header that displays all the column names.
Columns
- Add or remove columns from the page, by clicking the column picker icon,
at the top of each panel.
- Column descriptions:
- Alerts icon - shows an error count of alerts (e.g. configuration upload request expired or preferred FW version not supported. Click on the number of alerts to open a screen showing the alerts.
- Flag - shows the number of assets flagged in the configuration group.
-
Name - Configuration group name
- Mobile device - Mobile device associated with config group
-
Mobile device template - The mobile device template linked to the config group - click on the template name to open the template and view the settings.
- Event template - Event template linked to config group - click on the template name to open the template and view the settings.
-
Location template - Location template linked to config group - click on the template name to open the template and view the settings.
-
FW version - Preferred firmware version configured on the mobile device connected to the Mobile device template.
-
CAN script - CAN script(s) connected to Mobile device template - click on the name of the CAN script to open it on the template level.
-
Speed - Speed source connected to Mobile device template such as Speed sender, J1708 CAN Speed, GPS velocity as speed.
-
RPM - RPM source connected to Mobile device template such as RPM signal or J1708 CAN RPM.
-
Fuel - Fuel source connected to Mobile device template such as EDM fuel flow meter or J1708 CAN Fuel.
-
SP - shows whether Streamax camera is connected or not and displays the name of the type of camera. Configured on Mobile device template.
-
HOS - shows whether DTCO or ELD is in use. Configured on the Mobile device template (HOS Line).
