Movement Overview report

Marisa Potgieter
Using On-Road IoT Using Unity Portal

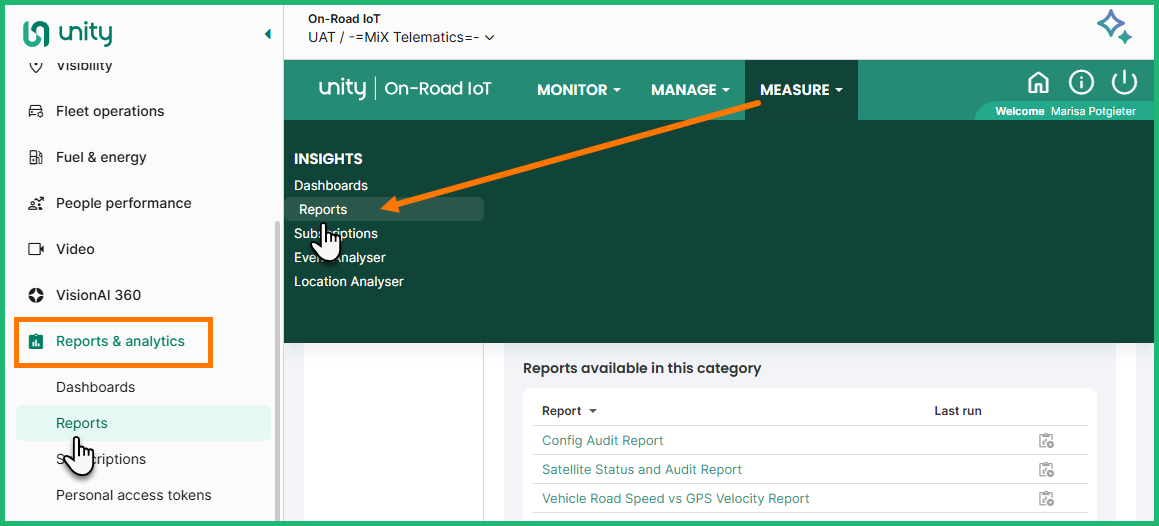

Click Measure. Click Reports & analytics
Under Insights, click Reports. Click Reports.
  1. Choose Movement reports under Select report category.
  2. Click on Movement Overview report.

Overview

The Movement Overview Report provides a high-level snapshot of the total number of visits and average time spent at all the locations in the selection criteria for the selected assets or drivers for the date range. If a selected location isn't visible, none of the selected assets or drivers visited that location within the date range. This report can help with route planning.

Users

Managers or supervisors who are affected by turnaround times at locations and/or time spent at selected locations, as well as the frequency of visits to selected locations.

Standard selection

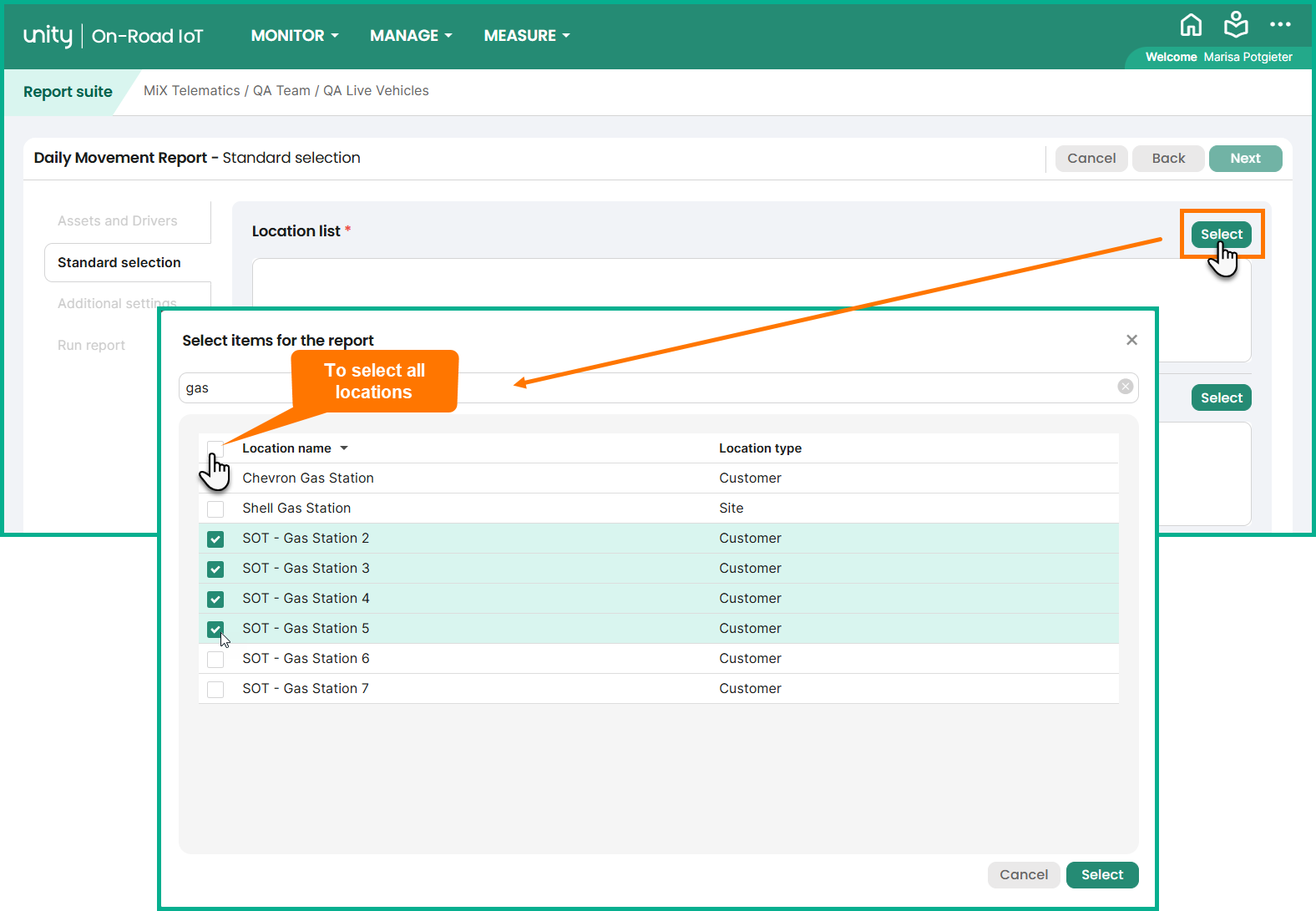

  1. Selecting a location is compulsory. Click the Select button.
  2. You can either select specific locations or view all by checking the box next to the location name heading.

Additional Settings

  1. Choose which of the Location types must be included in the report by checking the box next to it.:
    • Customer
    • No Go Zone
    • Other
    • Site
    • Speed zone
    • Undefined

Columns

  • Time At Location - the total time any selected asset/driver spent at this location in the selected date range.
  • Avg. Time At Location - the Time At Location divided by the No. of Visits.
  • First Visit - the earliest date/time in the date range any selected asset/driver stopped at this location.
  • Last Visit - the latest date/time in the selected date range any selected asset/driver stopped at this location.
  • Unique Visits - the number of unique times an asset/driver stopped at a location in a specified date range. This means if an asset stops at a location, it is seen as a unique visit and doesn't count any subsequent trips within that location once it entered the location that specific time. For example, a truck arrives back at the depot and ends its trip at the off-loading bay, then moves on to the wash bay, then moves on to refuel, and then goes to the parking area for reloading. None of these subsequent movements count as additional unique visits.

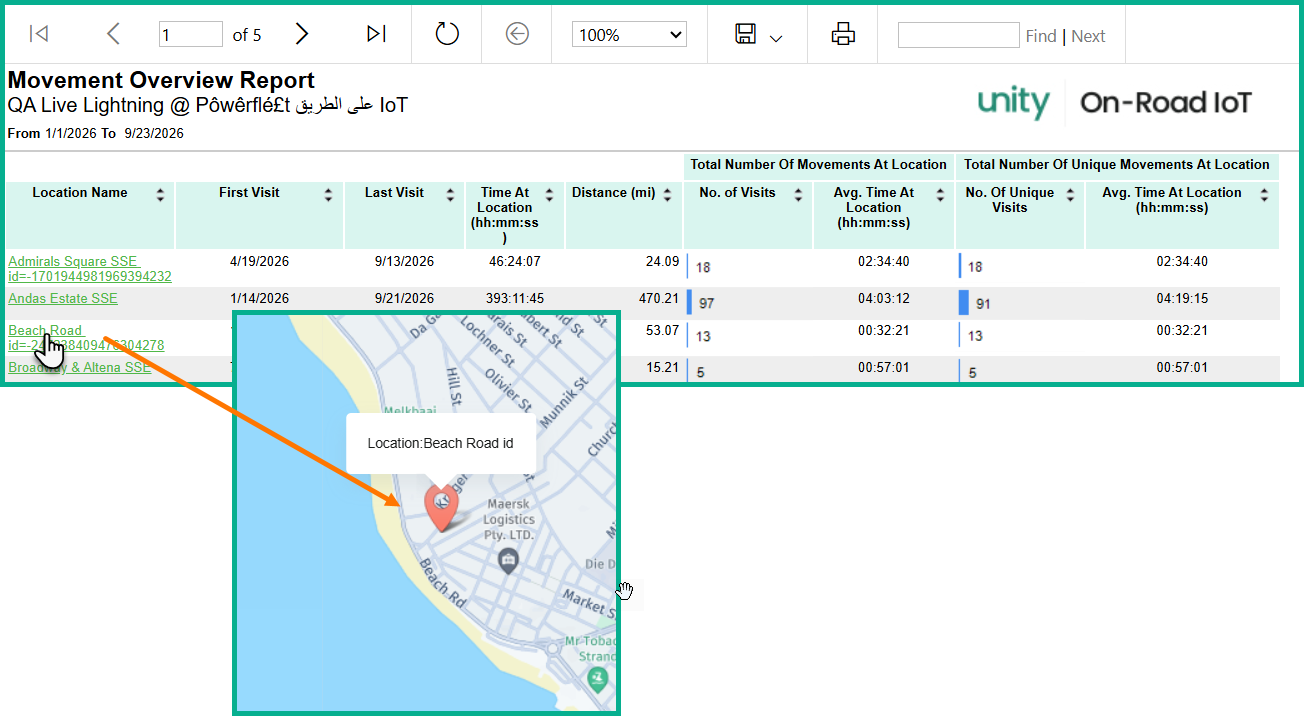

Clicking the description in the Location Name column will show the location on a map:
