Real-Time OPS enables real-time video and data monitoring across map and video modes, providing fleet visibility and operational safety. Live Tracking manages daily fleet operations by providing real-time geographic location, live video feeds, and alarm information. From this screen you can also access track playback and device playback.

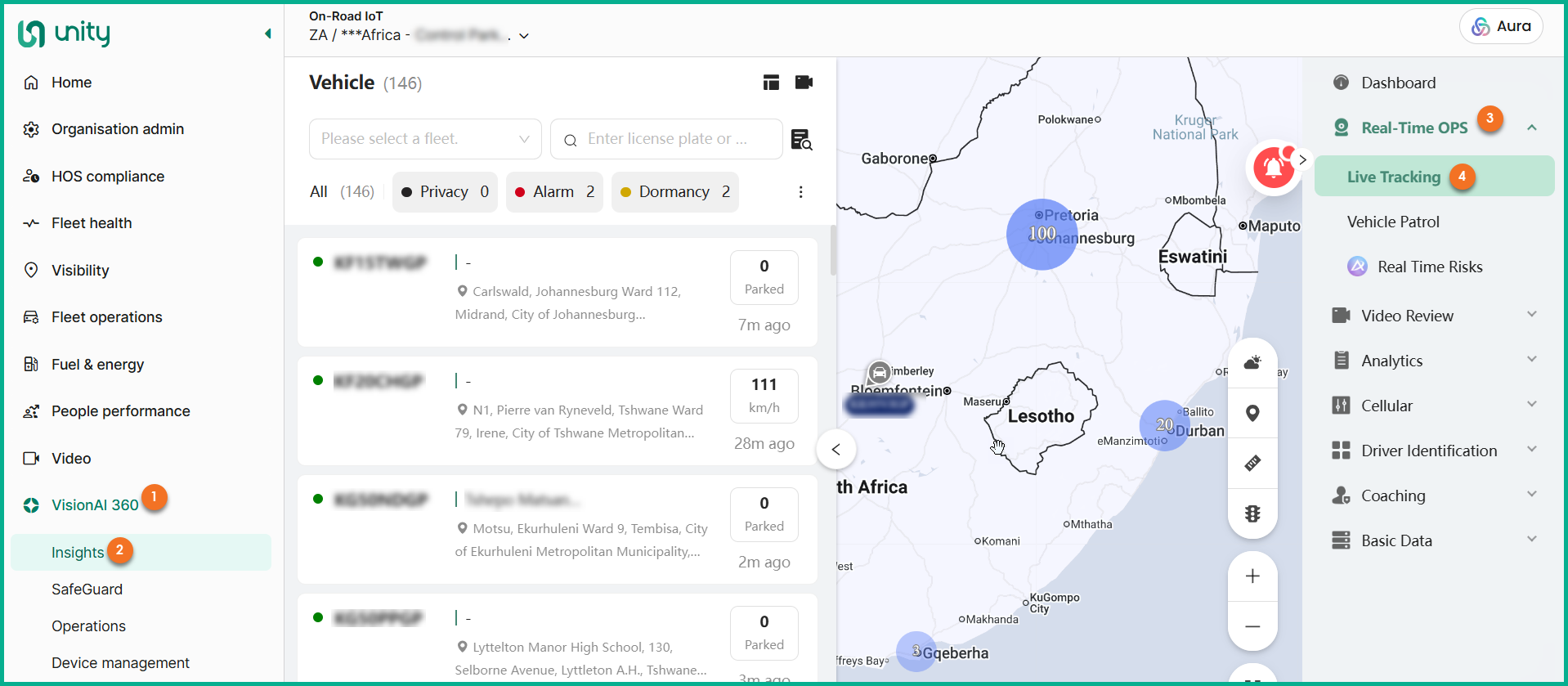

- In the Unity portal , click VisionAI 360.
- Click Insights.
- In the right-hand menu, click Real-Time OPS.
- Click Live Tracking.
Vehicle list and map
The Live Tracking screen displays the vehicle list on the left and a map on the right. The list header shows the total number of vehicles and the number currently online.

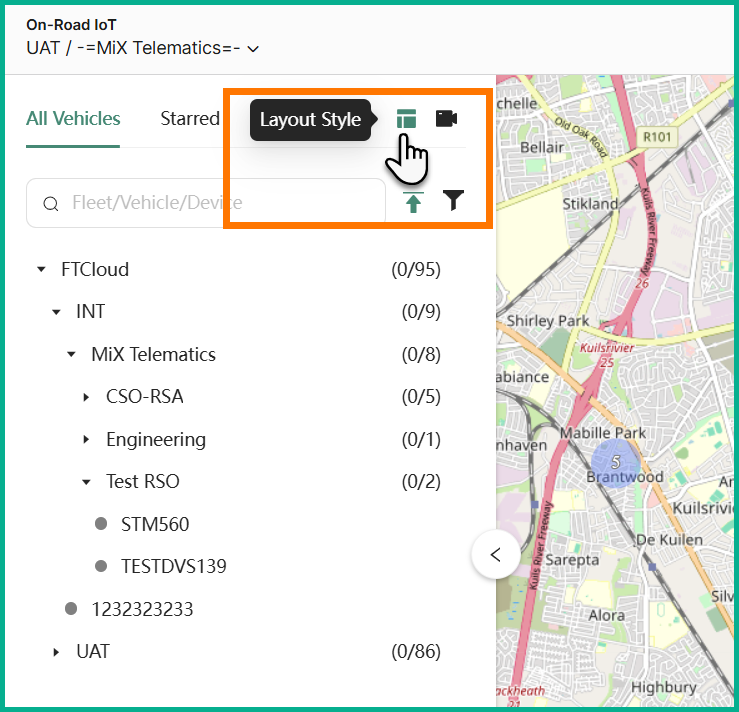

- Toggle between the tree view and the card style layout when you click the Layout Style button at the top of the list.
In the Tree view layout:

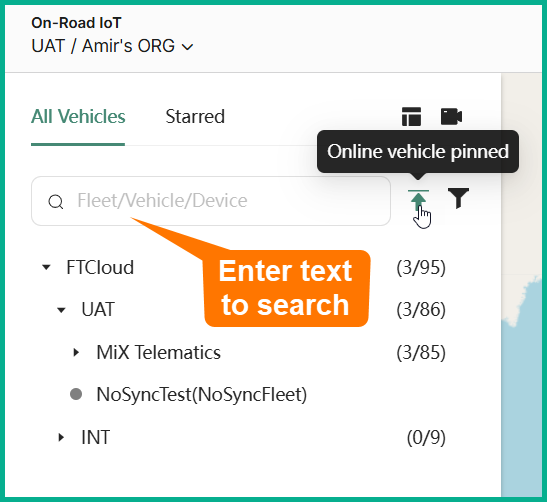

- Click Online Vehicle Pinned to sort the list so that those with the most online assets appear first. By default, assets are sorted alphabetically by name.
- Use the filter field to search by group name, licence plate number, or equipment number.

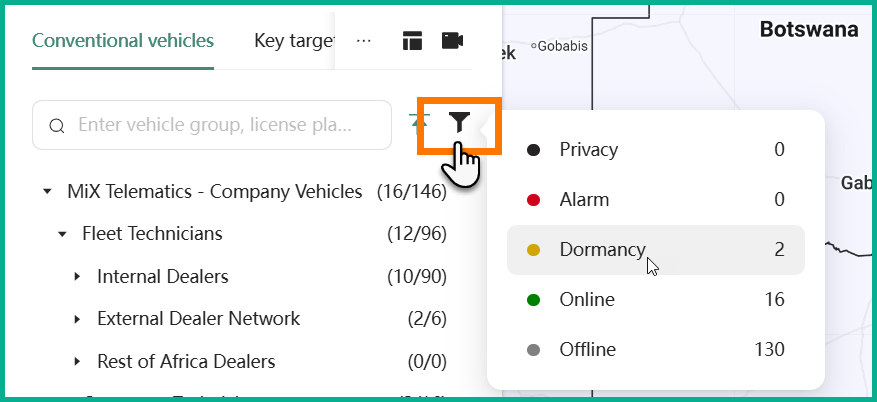

- Click the filter icon to filter by vehicle status (online or offline).
- Click a vehicle name in the list to zoom the map to that vehicle's location.

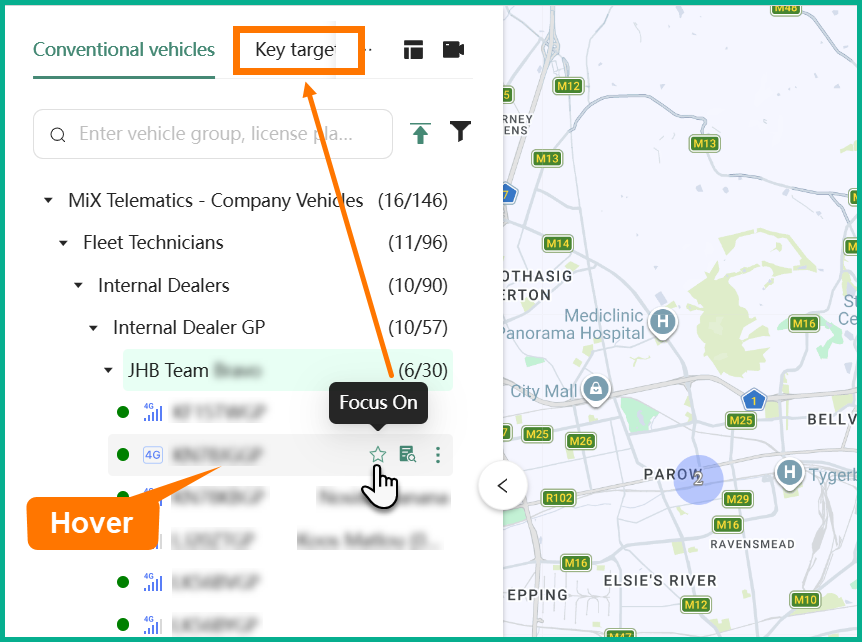

- Mark an asset as a key target vehicle by hovering over the asset and clicking the Star button next to it.
You can view these assets that you want to focus on in the Key Target Monitoring list by clicking the tap at the top.

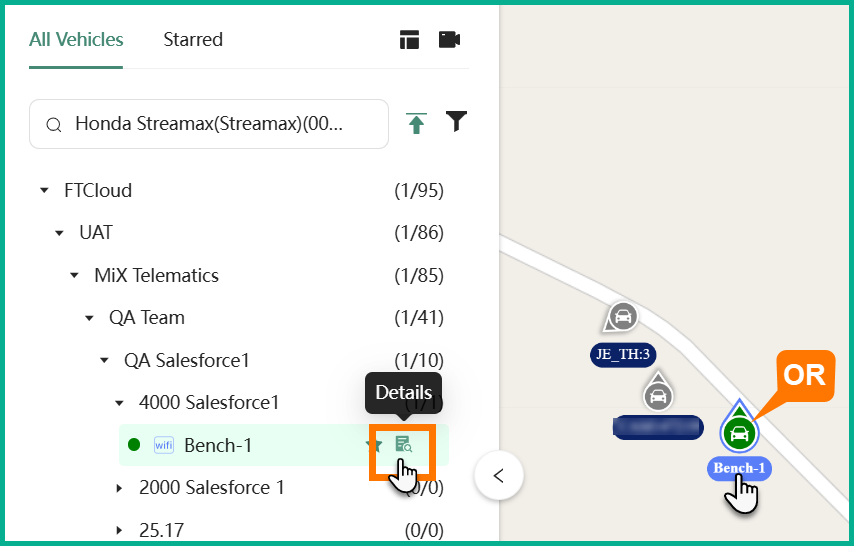

- Click the Details button next to a vehicle or group to open the vehicle or fleet information panel.
- You can also click a device icon on the map to view its information directly.
This shows the vehicle information (license plate number, fleet info, GPS time, direction, speed, location), the Device ID and SIM card number and unhandled alarms, e.g. GPS loss, video block, etc.
In the Card style layout:

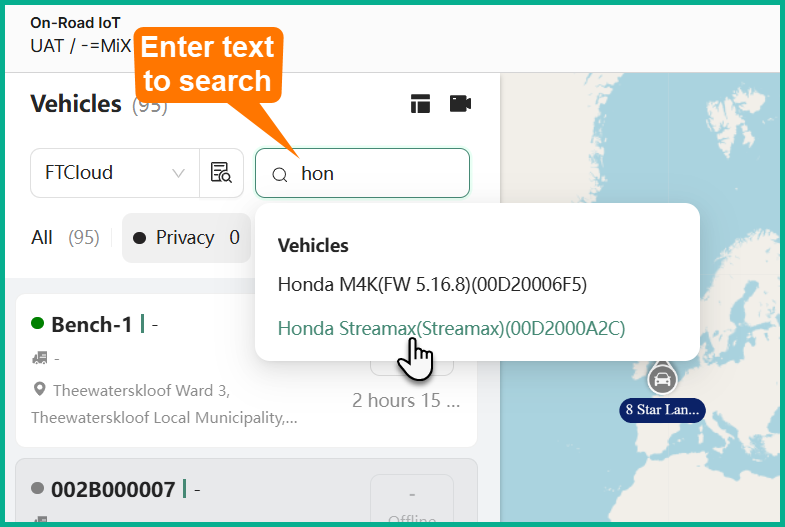

- Search the groups in the tip dropdown list. You can also search specific assets or devices by entering text at the top.
On the map

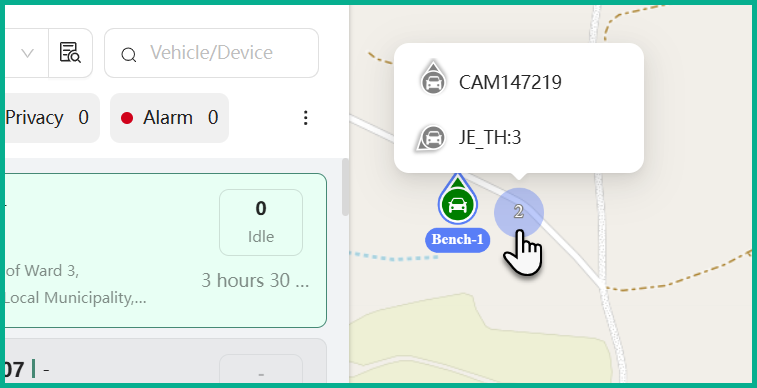

- On the map, vehicle counts per area are displayed as aggregation bubbles. Click a bubble to zoom in and view individual vehicle locations. Hover over a bubble to see a list of vehicles clustered in that area.
Map tools: The map supports weather overlays, location search, zip code search (US/UK), route measurement, traffic, satellite view, terrain view, full screen, and zoom controls.
Map Mode
- Click Map Mode or Video Mode to switch monitoring views. Map Mode shows real-time geographic distribution; Video Mode enables simultaneous live video from multiple vehicles. Read Video Mode in Live Tracking
