Output lines allow you to control relay-based peripherals, such as immobilization and general-purpose output peripherals, by assigning them to specific actions and configuring them directly from a mobile device.
Open the mobile device information for the required Teltonika device from the Mobile device templates.
Note: Output 1 has speed restrictions, and Output 2 has no restrictions.
- In On-Road IoT, click Manage.
- Under Config Admin, click Templates.
- Click the Mobile device templates tab.

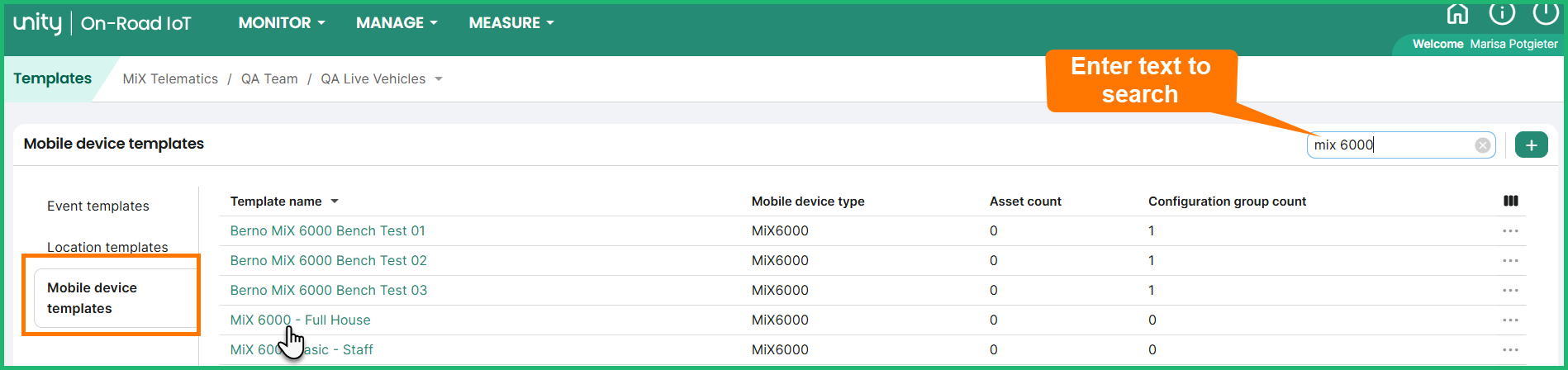

- Search for the relevant template using the filter feature at the top. In this case, you will search for the template containing the Teltonika mobile devices.
- Click the hyperlinked template description or click the three dots menu and select Edit.

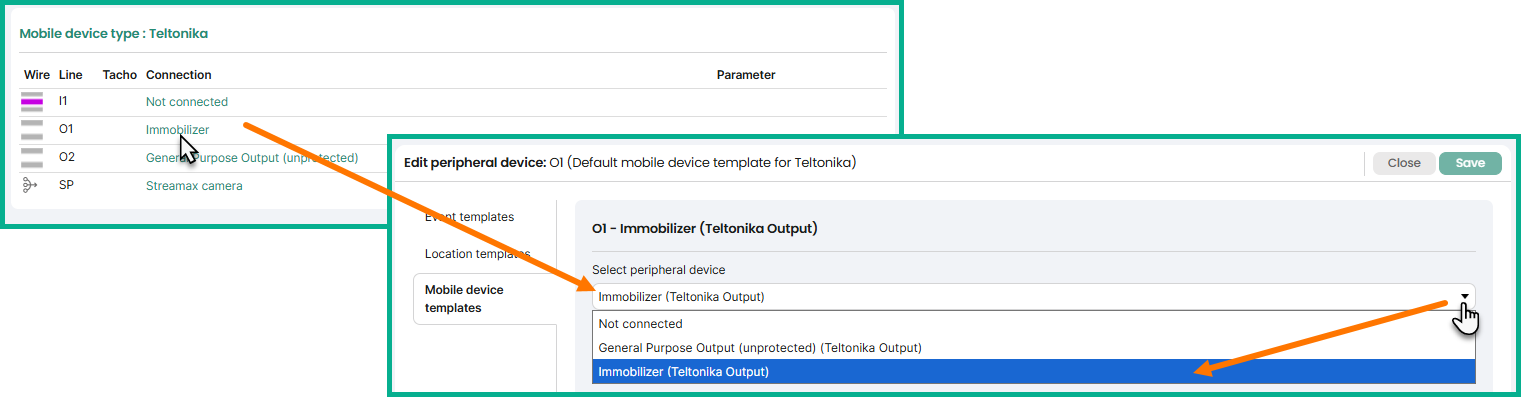

- Clink on the link next to O1 and/or O2. (Usually says Not connected).
If you do not see a link next to the output lines, click the Load now link to load all available peripheral devices for the organisation.
- Select your preferred peripheral from the dropdown list to connect to the output line.
- Click Save.
