The Quectel EG912Y-EU modem, previously used on the MiX 4000 device, has become obsolete and has therefore been upgraded to the Quectel EG915N-EA modem.
As a result, the MiX 4452/-B variants with EG915N-EA modem will replace the MiX 4412/-B (EG912Y-EU).
All necessary certifications and comparative field trial testing have been carried out to validate this new modem as a suitable replacement for the EG912Y-EU modem, which is now discontinued.
Firmware support for this new modem has been added to FW v5.8.16 and will be available on all consequent versions.
Please sign in to download the certification documents and test reports
Download the product fact sheet
The MiX4000 4452 hardware variant has been added to the product fact sheet.
Additional technical details
Declaration of Build State
| Manufacturer: | MiX Telematics International (Pty) Ltd |
| Country of Origin: | South Africa |

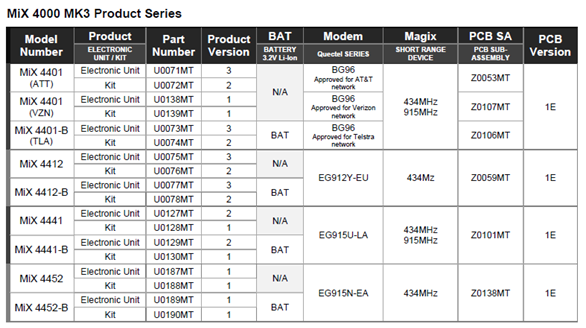

| Product Series: | MiX 4000 MK3 |
| Highest Operating Frequency: | 2.690 GHz |
| Declaration document number: | DBZ0049A |
| Declaration Version: | 1E-5 |
| Declaration Date: | 17/4/2024 |
| Change Reference(s): | ECN 973 |
Technical Description
The MiX 4000 series is a range of fleet products that incorporates the latest market trends. It consists mainly of an on-board computer, a modem, a GNSS, an accelerometer, low energy Bluetooth, I/O, 2 X CAN, 2 X RS232, 4 X positive drives, and an optional 434 / 915 MHz short-range transceiver.
The range consists of variants with a LTE CAT 1 cellular module and a variant with an LTE CAT M1 cellular module. All these variants make use of the same PCB, the only difference is the modem to be populated and all the modems have the same footprint.
