Overview
- Click Measure.
- Under Insights, click Reports.
- Choose Materials Handling reports under the report category.
The Materials Handling Event Detail report shows all the details associated with selected events. This report should be run for no more than 2 months of data at a time to prevent long-running reports. The report will also show the street level name, as well as any defined location associated with the captured coordinates, and provides the ability to view if an event has occurred out of trip or in trip as well as the total machine hours used per specific event.
Users
- Supervisors who need to monitor yellow equipment.
Standard selection

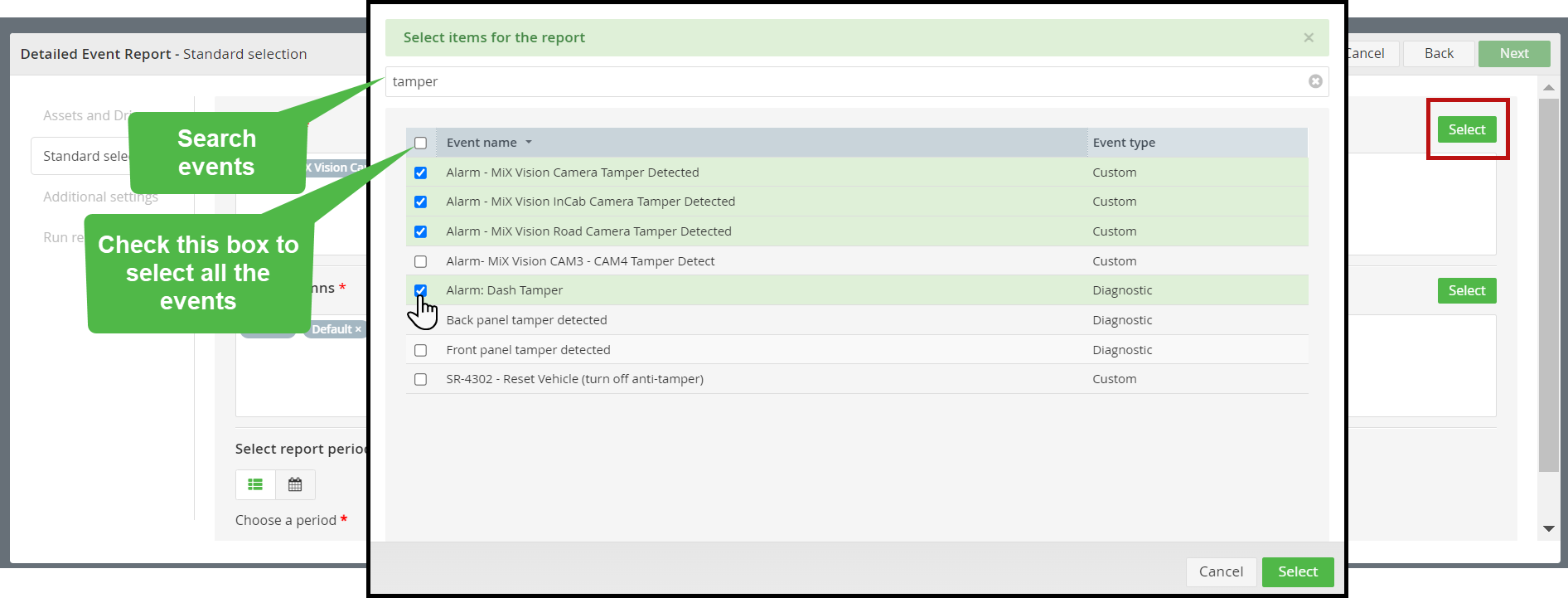

- Choose the events that you want to view in the report, by clicking the Select button.
Additional Settings
- Choose if you want to view detail, summary or both by checking the boxes next to the options.
Columns
Default
- Start Date
- Machine Description/Operator Name
- Serial Number/Operator ID
- Event Description - e.g. GPS jamming, ignition on, over speeding, etc.
- Start Time
- End Time
- Occurrences - number of times the event occurred.
- Event Value - e.g. 59.2 for over speeding (mph will be displayed in the measurement units column if selected)
- Total Duration (Machine Hours)
Optional columns
- Camera 1
- Camera 2
- End Location
- Measurement Units - e.g. mph or only mi depending on the event value.
- Operator name/Machine Description
- Site Name
- Start Location
- Time zones
