The relay switch can be set when you check the box to enable relay drive 1 or 2 when the condition of a certain event has been true for a specified delay. You can make the change on the library level and cascade it to various Event templates or you can make the change for a specific device or site on the event template.
- Click Manage.
- Under Config admin, click Libraries / Templates.
- Click the event name to view all the settings.

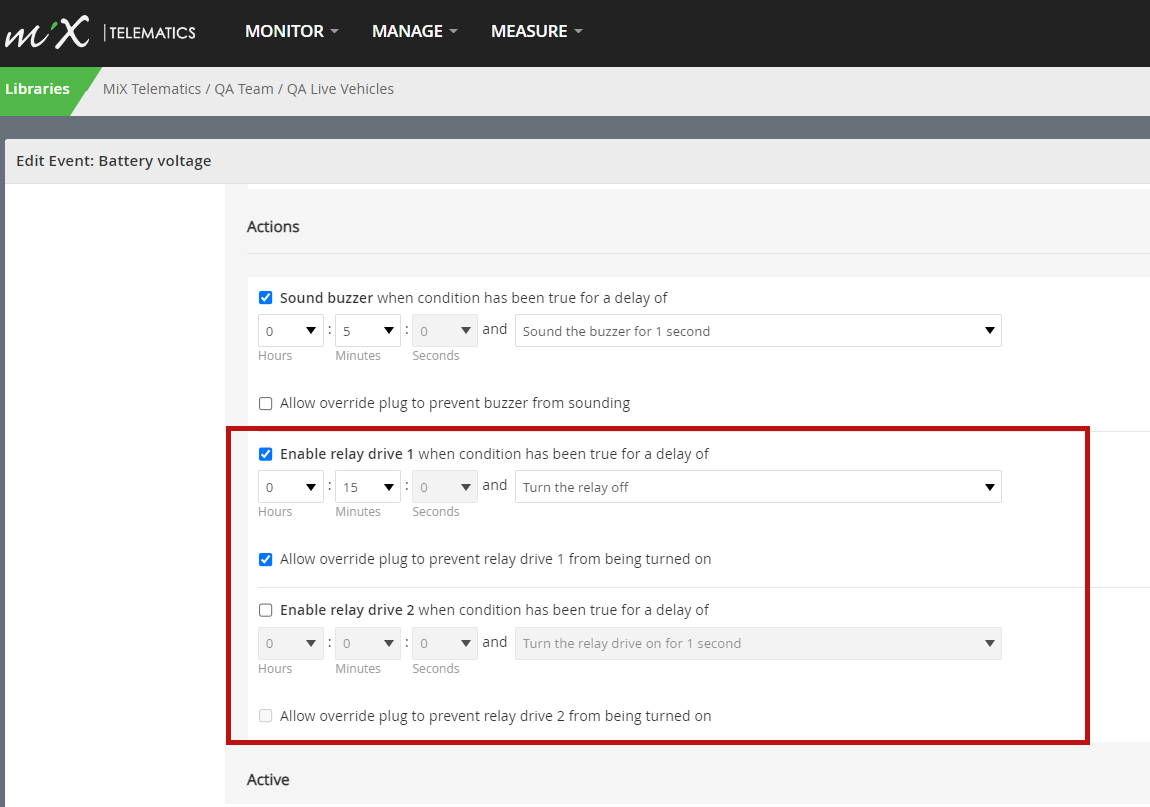

- Scroll down to the Actions section. This section defines what action must be taken when the event is triggered.
- Check the box next to Enable relay drive 1/2 when condition has been true for a delay of
- You can also specify the duration of time after which the relay must be switched by using the dropdown boxes for hours, minutes and seconds.
This will not be available if a GPS or other device is using the relay for power control.
- Select what must happen:
- turn the relay drive on for 1 second
- turn the relay drive on while the condition is true
- turn the relay on
- turn the relay off * progressively activate the relay * If you check the Allow override plug to prevent relay drive 1 from being turned on the alarm and relay will not activate during a trip if a System Override plug was inserted between identifying the driver and starting the trip.
- Click Save.
If you need to know how to configure events that monitored the relay state , click here.
