The driver log on the HOS Log viewer shows a list of HOS/ELD related events, including all data diagnostics received from the MiX ELD.
Users can disable these data diagnostic events showing on the log for usability purposes, i.e to make the list easier to read if numerous diagnostic events occurred or can enable it again for troubleshooting.
Note: this only applies to diagnostic events and not malfunction events.
Enable or disable these events as follows:
- Click Monitor.
- Under Hours of Service, click Log Viewer.
- Select the specific driver by clicking on the breadcrumb bar at the top and using the Miller Columns.
- Select the date and time.
- Click the downward actions arrow.

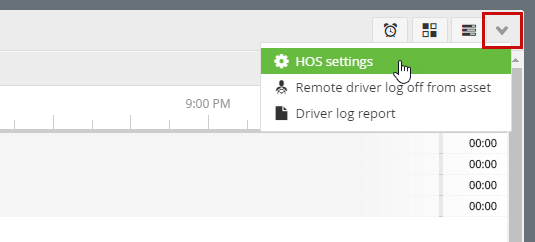

- Click HOS settings as shown below:
- Check the Hide ELD data diagnostics events checkbox. (Remove the check to show these events)
- Click Save.
